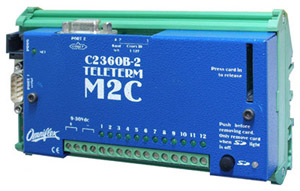

Product Brief - Model C2360B-21-0 Teleterm M2C Conet RTU 9-30Vdc

Teleterm M2C Conet RTU 9-30Vdc

picarrow Low Power Operation
arrow 9 to 30Vdc Powered
arrow SD Memory Card Slot for Local Logging
arrow On-board temperature sensor and supply voltage monitor
arrow Integral Real Time Clock with Battery Backup
arrow Programmable for a wide range of applications
arrow Wide Operating Temperature range
arrow Compact Size for tight spaces
arrow Convenient DIN rail mounting
arrow Modbus RS232/RS485 or Custom Protocol Port
arrow CONET Port

Programmable CONET RTU with 12 Universal I/O DI/DO/AI/AO, RS232/485 Modbus Master or Slave or Conet/s or Custom Protocol. Powered from 9-30Vdc. Battery backed Real Time Clock

The Teleterm M2 Series is a State of the art RTU range designed to expand the possibilities of remote monitoring and control by providing a cost effective platorm with a wide range of features.

Each unit comes with 12 universal I/O that can be configured for analogue or digital input or output according the application:
I/O 1 to 10 can be Digital Input, Digital Output, Analogue Input.
I/O 11 and 12 can be Digital Input, Analogue Input or Analogue Output.

The On board RS232/485 port can be used to acquire data from third party devices using either the Modbus Protocol or a custom "plug in" protocol.

An SD memory Card is also incorporated for local data logging applications.

Communications and Programming options differentiate one unit from another.

The C2360B-21-0 has the following features:

  • 12I/O universal
  • RS232/RS485 Port
  • CONET Port
