Product Brief - Model MT8150XE 15 Inch HMI, Atex, USB, Serial, Ethernet

15 Inch HMI, Atex, USB, Serial, Ethernet Port

picarrow 15" 1024 x 768 TFT LCD, LED Backlight
arrow Slim Design
arrow Fan-less Cooling System
arrow Built-in 256 MB Flash Memory
arrow SD Card Slot for Expansion of Storage
arrow One USB Host Port and one USB Client Port
arrow COM1 and COM3 RS-485 Built-in Isolation
arrow COM1 and COM3 RS-485 2W support MPI 187.5K
arrow Built-in Power Isolator
arrow NEMA4 / IP65 Compliant Front Panel
arrow ATEX Zone 2/22 Category 3 G/D


15" 1024x768 Pixels HMI. Atex Zone 2/22, Modbus and PLC drivers. Uses Easybuilder Software for Screen Application development, 1x Ethernet, 2x USB and 2x Serial Port, SD Slot, requires cable for downloading applications. CUTOUT(WxH) 352x279mm


Click the button to view of overview of EasyView HMIs.


SPECIFICATIONS

Display

Display:
Brightness (cd/m2):
Contrast Ratio:
Color:
Resolution (WXH):
Back Light:
Back Light Life Time:

LCD Viewing Angle (T/B/L/R)

15" TFT LCD
400
700:1
16.2 million
1024x768
LED
>50 000 hr.

70/70/80/80

Processor:

32bit RISC Cortex-A8 1GHz

Enclosure:

Aluminum

Touch Panel

Touch Panel Type:

4-wire resistive type

Memory

Flash:
RAM (RAM):

256MB
256MB

I/O ports

SD Card Slot:
USB Host:
USB Client:
Ethernet Port:
COM Port:


RS485 Dual Isolation:
CAN Bus:
HDMI:
AudioOutput:
Video Input:

SD/SDHC
USB 2.0 Port x 1
USB 2.0 Port x 1
10/100 Base-T
COM1(RS232 / RS485 2W/4W),
COM3(RS485 2W)
Yes
N/A
N/A
N/A
N/A

Power

Input Power:
Power Consumption:

24 ±20% Vdc
1000mA@24Vdc

RTC:

Built-in

Specification

Panel Cutout (WXH):
Weight:

352x279mm
Approx 2.75kg

Operation

CE:
Atex
UL:
Voltage Resistance:
Isolation Resistance:
Vibration Endurance:
Protection Structure:

Storage Temperature:
Operating Temperature:
Operation Humidity:

CE Marked
Atex Zone 2/22 Category 3 G/D
cULus Listed
500 VAC (1 min)
Exceed 50MΩ at 500 Vdc
10 to 25 Hz (X,Y,Z direction 2g 30 minutes
UL Type 4X (indoor use only) / NEMA4 /
IP65 front panel
-20~60°C (-4°~140°F)

0°~50°C (32°~122°F)
10-90% RH (non-condense)

MECHANICAL DIMENSIONS

CERTIFICATION
(Click on Certificate to View)

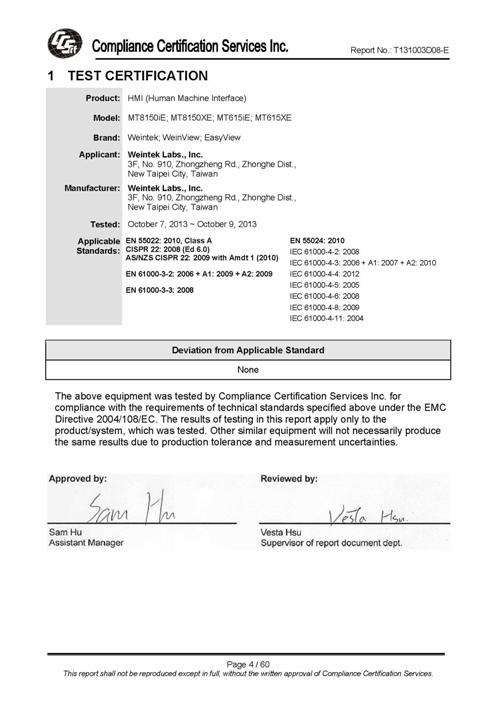

CE

UL

RoHS

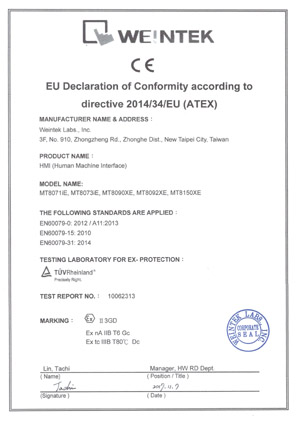

Atex

Further Literature
EasyBuilder Pro User Manual in PDF (26.9MB)
EasyBuilder Pro User Manual
Installation Guide
Details of installation requirements and further specifications.
Approval Certificates
Weintek HMI Approval Certificates
EasyBuilder Pro Software Release Notes
Changes made to the software
Relevant Downloads
 EasyView Supported PLCs
EasyView Supported PLCs (55.8MB)
 Easy Access 2.0 Software (53.8MB)
Software used to access EasyView HMIs over the Internet
 Supported PLCs
List of PLCs that work with EasyView HMIs
