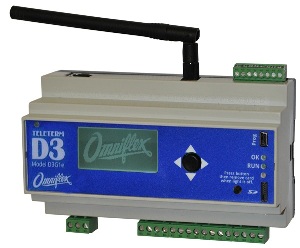

Product Brief - Model C2395A-1-11 Teleterm D3G1e RTU AC,2G
Teleterm D3G1e RTU AC,2G
Teleterm D3G1e Programmable RTU with GSM Port, Serial Modbus RS485, Ethernet, SD Logging, Micro LAN, 85-264Vac Power with Integral battery backup, ISaGRAF Ready; order CC030A-URTT to activate The Teleterm D3 Series is a State of the art RTU range designed to expand the possibilities of remote monitoring and control by providing a cost effective platorm with a wide range of features and is compatible with the Data2Desktop service. Each unit comes with 8 universal I/O that can be configured for analogue or digital input or output according the application. The On board Ethernet and GSM mobile phone network can be used to acquire data from third party devices using either the Modbus Protocol or a custom "plug in" protocol. The Teleterm D3 series can be programmed in ISaGraf (option), in any of the 5 Industry standard IEC61131-3 languages providing the ability to execute local control and custom logic. An SD memory Card is also incorporated for local data logging applications. Communications and Programming options differentiate one unit from another. The C2395A-1-11 has the following features:
Also available in a DC version, see Model C2395A-2-11.
|
|
||||||||||||||||||||||||||||||||||||||||||||||
8 Configurable Inputs and Outputs
