Product Brief - Model MT8101IE 10 Inch HMI, USB, Serial, Ethernet

10 Inch HMI, USB, Serial, Ethernet Port

pic


10" 800x480 Pixels. Modbus and PLC drivers refer brochure. Uses Easybuilder Software for Screen Application development, 1x Ethernet, 2x USB and 3x Serial Port, SD Slot, requires prog cable for downloading applications. CUTOUT(WxH) 259x201mm


Click the button to view of overview of EasyView HMIs.

SPECIFICATIONS

Display

Display:

10" TFT Widescreen

Brightness (cd/m2):

300 cd/m2

Contrast Ratio:

500:1

Color:

65536

Resolution (WXH):

800x480

Back Light:

LED

Back Light Life Time:

30,000 hr



Processor:

32bit RISC CPU 400 MHz

Enclosure:

Plastic

Touch Panel

Touch Panel Type:

4 wires resistive type



Memory

Storage:

128 MB Flash

RAM (RAM):

64 MB



I/O ports

SD Card Slot:

Yes

USB Host:

USB 1.1 x 1

USB Client:

USB 2.0 x 1

Ethernet Port:

10/100 Base-T

COMPort:

COM1(RS232 / RS485 2W/4W),COM2(RS232)

COM3(RS232/RS485 2W)

Audio:

N/A



Power

Input Power:

24 ±20% VDC

Power Consumption:

300mA@24VDC



RTC:

Built-in

Specification

Panel Cutout (WXH):

259x201mm

Weight (KG):

Approx 1.4kg



Operation

CE:

Compilies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards

FCC:



UL:

E248297

Voltage Resistance:

500 VAC (1 min)

Isolation Resistance:

Exceed 50MΩ at 500 VDC

Vibration Endurance:

10 to 25 Hz (X,Y,Z direction 2G 30minutes)

Protection Structure:

IP65 front panel (O ring seal)

Storage Temperature:

-20°~60°C (-4°~140°F)

Operating Temperature:

0°~50°C (32°~122°F)

Operation Humidity:

10-90% RH (non-condense)




MECHANICAL DIMENSIONS

CERTIFICATION
(Click on Certificate to View)

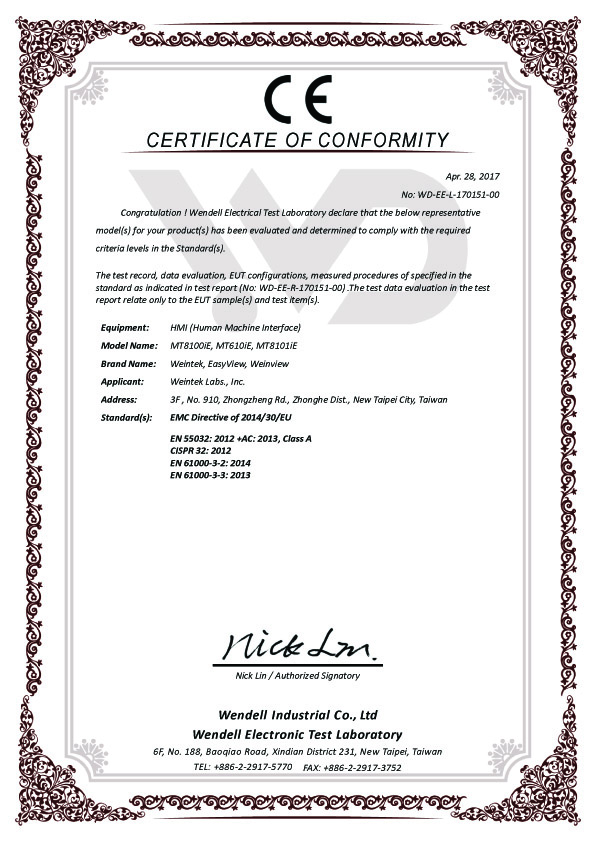

CE

UL

RoHS

Further Literature
EasyBuilder Pro User Manual in PDF (26.9MB)
EasyBuilder Pro User Manual
Installation Guide
Details of installation requirements and further specifications.
EasyBuilder Pro Software Release Notes
Changes made to the software
Relevant Downloads
 EasyView Supported PLCs
EasyView Supported PLCs (55.8MB)
 Easy Access 2.0 Software (53.8MB)
Software used to access EasyView HMIs over the Internet
 Supported PLCs
List of PLCs that work with EasyView HMIs
