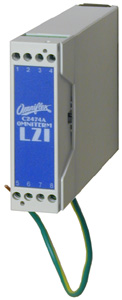

Product Brief - Model C2474A Omniterm LZI Loop Power Isolator Surge Protected

Omniterm LZI Loop Power Isol Surge

picarrow Field Interface for 2 or 4-wire transmitters
arrow 10-30Vdc supply suits battery operation
arrow Includes 10kA Surge Protection.
arrow Includes Signal Isolation
arrow Includes optional 250 ohm termination
arrow Very low power suits battery applications


Omniterm LZI. Loop powered (4-20mA) Isolator which provides 1500Vrms isolation, Surge Protection Discharge Current 10kA 8/20μs nominal. Low Volt drop on input <3V. Fitted with 250Ohm Resistor for option of 1-5V output.


The OMNITERM LZI is a loop powered isolating current repeater specifically designed to isolate instrument current loops from circulating ground currents that can cause system inaccuracies, or at worst, instrument failure. In addition the LZI has surge protection. Insert in any 4-20mA current loop to isolate the instruments in the loop. The current applied to the input is repeated on the isolated output, and the load present on the output is reflected back to the input. No separate power source is required.

In many applications there is a need to convert the 4-20mA into 1-5Volts for an RTU, PLC or DCS etc. This is normally inconvenient because the precision resistor needs to be sourced, mounted and wired independently without causing loop errors. To overcome this obstacle, the LPI version also includes a precision 250ohm resistor that can be connected into the circuit to convert the output into 1-5V within themodule.

Forming part of OMNIFLEX' extensive OMNITERM range of industrial instrumentation, the OMNITERM LZI is designed to be DIN rail mounted, and is 22.5mm wide.

For high density applications consider the dual version, see Omniterm LZD (Model  C2475A).
