Powerterm P Instrument Power Supplies

Features & Benefits:

  • DIN Rail Mounted
  • Universal Input 90-264Vac
  • Adjustable 24Vdc output
  • LED Indicator for DC Power On and DC Low
  • Convection cooling - no fans
  • 100% Full Load Burn-in Test
  • 3 Year warranty



Designed for:

  • Process Control
  • Factory Automation
  • General Industrial Applications



All Round Protection:

  • Short Circuit
  • Over Voltage
  • Over Current
  • Over Temperature


The POWERTERM “P” range of DIN rail mount 24Vdc power supplies are specifically designed for industrial instrumentation applications. Use of carefully selected long-life components and conservative design parameters ensure increased reliability even in harsh conditions. They are a part of the range of POWERTERM industrial power supplies and battery chargers from Omniflex.



This third-generation family of power supplies uses the latest switch-mode supply technology to reduce cost, increase reliability and meet international safety and compatibility standards.



Priced to meet even the tightest budget!

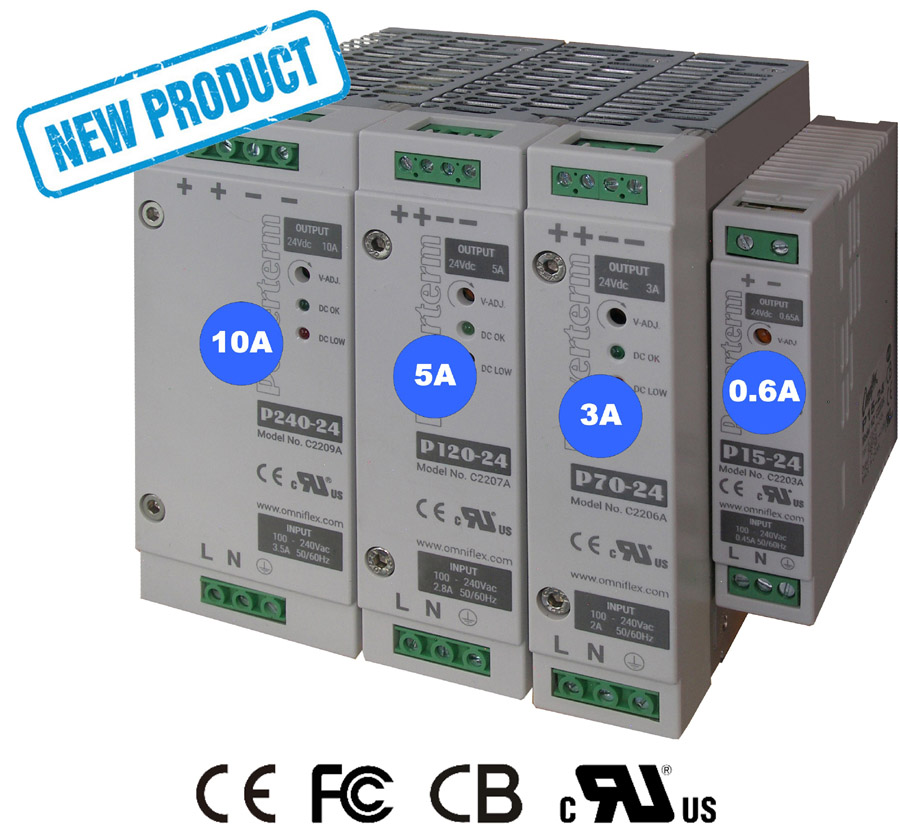

Powerterm P Series comprise four versions:

C2203A     Powerterm P15-24 PSU; Input 90-264Vac; Output 24Vdc at 0.65A. Click here for more details.
C2206A     Powerterm P70-24 PSU; Input 90-264Vac; Output 24Vdc at 3A. Click here for more details.
C2207A     Powerterm P120-24 PSU; Input 90-264Vac; Ouput 24Vdc at 5A. Click here for more details.
C2209A     Powerterm P240-24 PSU; Input 90-264Vac; Output 24Vdc at 10A. Click here for more details
