Product Brief - Model M1032B MX Base

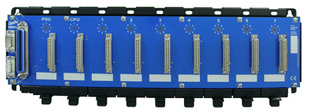

Maxiflex 8 I/O Expander Base

picarrow Wall mounting
arrow System sizes from 2 to 15 I/O modules per CPU
arrow Secure easy-to-use module mounting
arrow Hot Plug-in of I/O modules
arrow Automatic I/O module identification and scanning
arrow Optional module keying
arrow 19" frame adapter available

Maxiflex 8 I/O Expander Base for any I/O modules. Separate PSU module required for this base.

MAXIFLEX Bases are available in various sizes (for application flexibility and to cater for possible enclosure limitations).

These bases are designed for surface mounting but a purpose designed mounting bracket (Model M1821) facilitates mounting in a 19” frame.

Two types of base are available in this range: Master Bases and Expander Bases.
Every Master Base will accept a CPU module plus a number of I/O modules, while the Expander Bases accept only I/O modules.

The number of I/O modules accessed by the CPU on any Master Base, (except the M1001 2I/O base which does not have an expander socket), may be expanded using any one of the Expander Bases. A single Expander Base is connected to a Master Base using the M1811 Expander Cable. This allows a maximum of 15 I/O modules to be connected to a single CPU module.

The M1811 Expander Cable is 400mm long, allowing a maximum of 180mm between the Master and Expander bases when mounted one above the other. A space of least 100mm must be allowed between bases when mounted to allow for module insertion/removal and field wiring.

Each MAXIFLEX module is secured in position on the base by a retaining clip that is pressed to remove the module.

Each Master base in the range requires a logic power supply to power the system. An additional logic power supply IS required for this expander base.
