EasyView Industrial HMI's

Omniflex does HMI's

Omniflex has selected Weintek Labs, one of the world's leading designers and manufacturers of Graphic HMI's to manufacture the Omniflex EasyView range of Industrial Graphics HMI's.

The EasyView range incorporates the latest technology available in a reliable easy-to-use range of plant visualisation tools.

Full driver support for over 250 PLC's makes the EasyView range one of the most versatile and affordable graphics HMI's available today.

Summary

  • Powerful HMI's in a wide range of sizes
  • Very easy to use
  • Free software tools
  • Very competitive pricing
  • Expert backup and support from Omniflex

Check out the HMI technology...


Use the latest HMI Technology

Faster to Engineer

The latest generation EasyBuilderPro software tools makes designing and deploying your HMI design quick and easy.

Better Quality Displays

The high-resolution 16 million colour touch screen technology makes fitting all you want into an aesthetically pleasing design easier.

Multi-screen systems

New networking technology allows mulit-PLC, multi-screen systems to be constructed.

Integrate iPad's and large screen HDTV's for even more innovative plant visualisation solutions.

Connect to all major PLC brands

Omniflex does HMI's

Connecting to your particular PLC is often the most difficult step in applying HMI's.

That is why we strive to give you the best possible support in achieving this step.

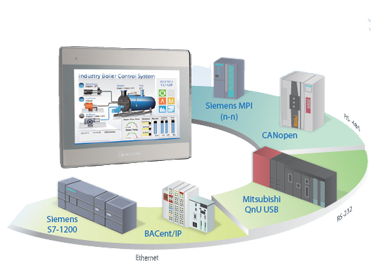

Omniflex offer a complete range of instructions and drivers for all major PLC brands and models plus the support to get it working as soon as possible.

Check support for your model of PLC here:

Supported PLC List

How to Select an HMI...


Selecting an HMI

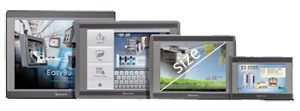

1. Select a size

MT8050iE MT8071iE MT8101iE MT8121XE MT8150XE
4.3"
109mm
480x272
7"
178mm
800x480
10.1"
256mm
800x480
12.1"
307mm
1024x768
15.1"
383mm
1024x768

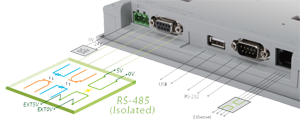

2. Check Communications Ports

Ports MT8050iE MT8071iE MT8101iE MT8121XE MT8150XE
USB Host 1 1 1 1 1
USB Client 0 0 0 0 1
Ethernet 1 1 1 1 1
RS232/485 1 0 0 1 1
RS232 0 1 1 0 0
RS485 1 2 2 1 1
Isol. RS85 No No No Yes Yes

Download the full EasyView HMI brochure here: Download EasyView HMI Brochure

Check out the free Programming Tools...

Other Specialised HMI Solutions

Cloud HMI - HMI+Server Networked Applications

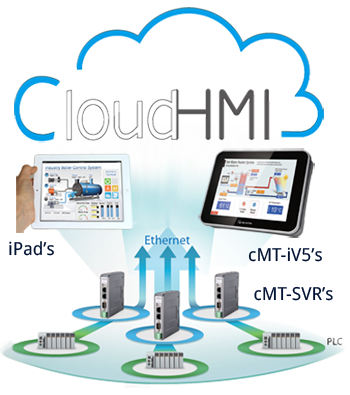

Connect multiple HMI screens to multiple HMI Servers over your factory Ethernet network.

Each cMT-SVR HMI Server communicates with its own PLC network.

Use panel-mounted EasyView cMT-iV5's (9.7 inch display) as your user interface, or view/control your plant over Wifi from your iPad.

Applications

  • View Multiple PLC's around your network from a single HMI.
  • View your plant data from multiple locations.
  • Roam your factory with your iPad and still retain full plant visibility.

Download datasheets here Download cloudHMI Brochure

Download cMT-SVR Datasheet

Download cMT-iV5 Datasheet


Display graphic plant data live on an HDTV screen

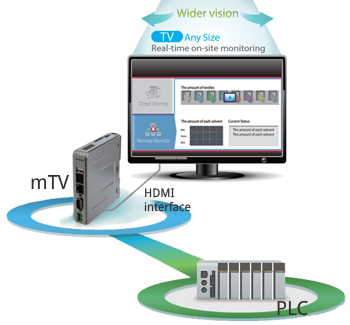

Connect any HDTV or monitor with an HDMI port to the EasyView mTV module to create a versatile HMI of any screen size.

Program the EasyView mTV with the same EasyBuilder programming tool as conventional HMI screens. No additional technology to learn.

Use panel-mounted EasyView cMT-iV5's (9.7 inch display) as your user interface, or view/control your plant over Wifi from your iPad.

Applications

  • Large real-time displays in factories and offices to display live dashboard metrics.
  • Display plant graphics on a control room wall using a projector for large mimic replacements.

Download datasheet here Download EasyView mTV Datasheet

Check out the free Programming Tools...


Programming Tools

EasyBuilder Pro Features

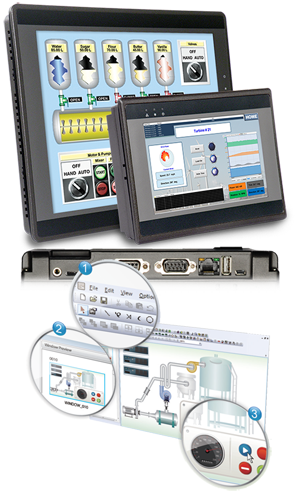

  • Integrated windows development environment, including toolbars, dialog boxes, menus, and drag & drop objects.
  • Large library of diverse graphics and animation objects.
  • Online/Offline simulation environment.
  • Macros allow logical expressions and custom programming.
  • Supports multiple formats of pictures:
    BMP, JPG, GIF, and PNG
  • Trend Display object makes graphical trending easy.

EasyBuilder Pro

EasyBuilder Pro is an all-in-one versatile Windows based programming tool for the entire current EasyView range of HMI products.

EasyBuilder Pro greatly simplifies the task of creating and editing graphics for your EasyView HMI.

Integrated communications drivers and simulation tools allows you to easily build and test your application with real PLC hardware before you deploy it to the HMI, greatly streamlining the development process.

EasyView Products supported

  • MT8050iE, MT6070iE, MT8070iE, MT8100iE
  • MT8121XE, MT8150XE
  • mTV
  • cMT-SVR + cMT-iV5

Download EasyBuilder Pro

Microsoft Windows 7 and 8 X86 (X64 Compatible) - 184Mb .zip file

Try before you Buy...


Try Before You Buy

1. Install EasyBuilder Pro

Download EasyBuilder Pro from our website.
It is free to download and use.
This is not a trial version. It is the full package.

Install EasyBuilder on your Windows 7 or Windows 8 PC.


2. Build your first EasyView Screen

Follow the step-by-step instructions in the user manual to learn how simple it is to build applications on your EasyView HMI using EasyBuilder Pro.


3. Connect a PLC to your PC

The driver you need is dependent upon the type of PLC. We have detailed instructions for over 150 PLC's.

Download our detailed connection guide.


Congratulations on your first EasyView Application!!

Contact Omniflex to assist you to select the HMI best suited to your application. Quote
