Product Brief - Model MT8121XE 12.1 Inch HMI, USB, Serial, Ethernet

12.1 Inch HMI, USB, Serial, Ethernet Port

pic


12.1" 800x600 Pixels. Modbus and PLC drivers refer brochure. Uses Easybuilder Software for Screen Application development, 1x Ethernet, 2x USB and 3x Serial Port, SD Slot, Audio, requires prog cable for downloading applications. CUTOUT(WxH) 305x231mm


Click the button to view of overview of EasyView HMIs.


SPECIFICATIONS

Display

Display:

12.1" TFT LCD

Brightness (cd/m2):

400 cd/m2

Contrast Ratio:

500:1

Color:

65536

Resolution (WXH):

800x600

Back Light:

CCFLx2

Back Light Life Time:

50,000 hr



Processor:

32bit CISC CPU 500 MHz

Enclosure:

Plastic

Touch Panel

Touch Panel Type:

4 wires resistive type



Memory

Storage:

256MB D.O.M

RAM (RAM):

256MB DDR 400MHz



I/O ports

SD Card Slot:

Yes

USB Host:

USB 2.0 Full Speed Host port x 2

USB Client:

N/A

Ethernet Port:

10/100 Base-T

COMPort:

COM1(RS232 / RS485 2W/4W),COM2(RS232), COM3(RS232/RS485 2w)

Video Input Port:

NTSC/PAL RCA x 2 (Optional) V2 only

Audio:

N/A



Power

Input Power:

24 ±10% VDC

Power Consumption:

1.25A@24VDC



RTC:

Built-in

Specification

Panel Cutout (WXH):

305x231mm

Weight (KG):

Approx 2.1kg



Operation

CE:

Compilies with EN 55022:1998+A1: 2000+A2:2003, EN 55024:1998+A1:2001+A2:2003 standards

FCC:



UL:

E248297

Voltage Resistance:

500 VAC (1 min)

Isolation Resistance:

Exceed 50MΩ at 500 VDC

Vibration Endurance:

10 to 25 Hz (X,Y,Z direction 2G 30minutes)

Protection Structure:

IP65 front panel (O ring seal)

Storage Temperature:

-20°~60°C (-4°~140°F)

Operating Temperature:

0°~50°C (32°~122°F)

Operation Humidity:

10-90% RH (non-condense)



MECHANICAL DIMENSIONS

CERTIFICATION
(Click on Certificate to View)

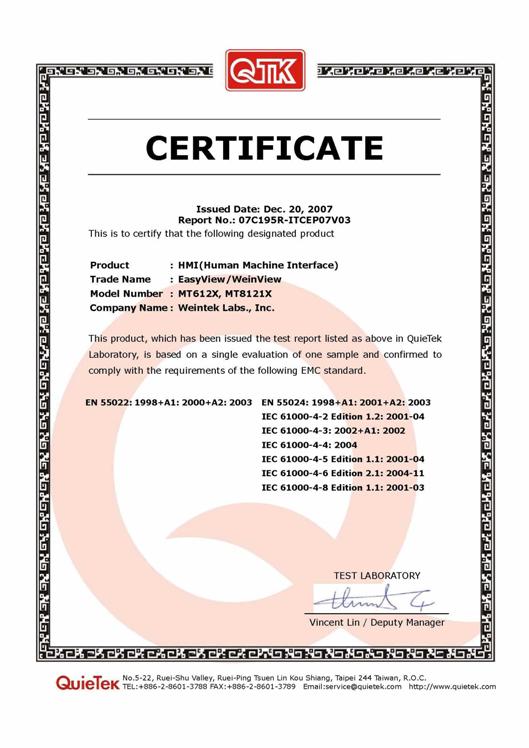

CE

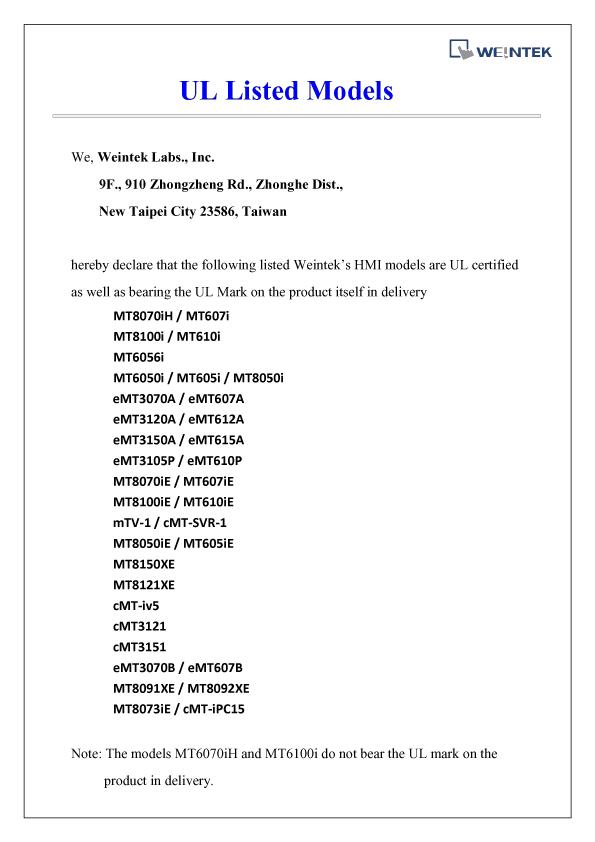

UL

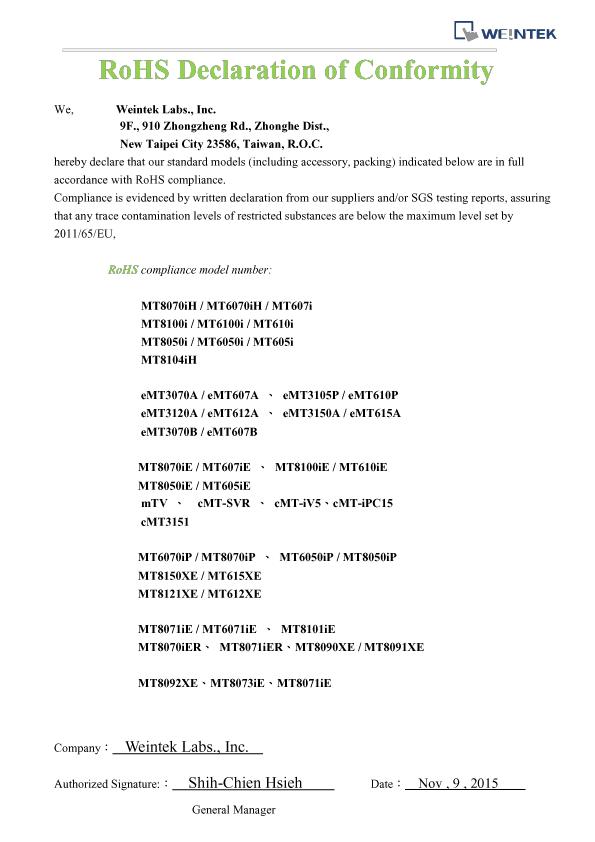

RoHS

Further Literature
EasyBuilder Pro User Manual in PDF (26.9MB)
EasyBuilder Pro User Manual
Installation Guide
Details of installation requirements and further specifications.
EasyBuilder Pro Software Release Notes
Changes made to the software
Relevant Downloads
 EasyView Supported PLCs
EasyView Supported PLCs (55.8MB)
 Easy Access 2.0 Software (53.8MB)
Software used to access EasyView HMIs over the Internet
 Supported PLCs
List of PLCs that work with EasyView HMIs
