Product Brief - Model MT8050IE 4.3 Inch HMI, USB, Serial, Ethernet

4.3 Inch HMI, USB, Serial, Ethernet Port

pic


4.3" 480x272 Pixels HMI. Modbus Protocol and PLC drivers refer to brochure. Uses Easybuilder Software for Screen Application development, USB and Serial Port, requires program cable for downloading applications. CUTOUT(WxH) 119x93mm


Click the button to view of overview of EasyView HMIs.

SPECIFICATIONS

Display

Display:

4.3" TFT LCD

Brightness (cd/m2):

500 cd/m2

Contrast Ratio:

600:1

Color:

65536 colors

Resolution (WXH):

480X272

Back Light:

LED

Back Light Life Time:

30,000 hr



Processor:

32bit RISC CPU 400 MHz

Enclosure:

Plastic

Touch Panel

Touch Panel Type:

4-wireResistive Type



Memory

Storage:

128 MB Flash

RAM (RAM):

64 MB



I/O ports

SD Card Slot:

N/A

USB Host:

N/A

USB Client:

USB 2.0 X1

Ethernet Port:

N/A

COMPort:

COM1 (RS232, RS485, 2W/4W), COM3 (RS485 2W)

Audio:

N/A



Power

Input Power:

24 ±20% VDC

Power Consumption:

250mA



RTC:

N/A

Specification

Panel Cutout (WXH):

119X93mm

Weight (KG):

0.3kg



Operation

CE:

Compilies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards

FCC:

-

UL:

E248297

Voltage Resistance:

500 VAC (1 min)

Isolation Resistance:

Exceed 50MΩ at 500 VDC

Vibration Endurance:

10 to 25 Hz (X,Y,Z direction 2G 30minutes)

Protection Structure:

IP65 front panel (O ring seal)

Storage Temperature:

-20°~60°C (-4~140°F)

Operating Temperature:

0°~50°C (32°~12°F)

Operation Humidity:

10-90% RH (non-condense)




MECHANICAL DIMENSIONS





CERTIFICATION
(Click on Certificate to View)

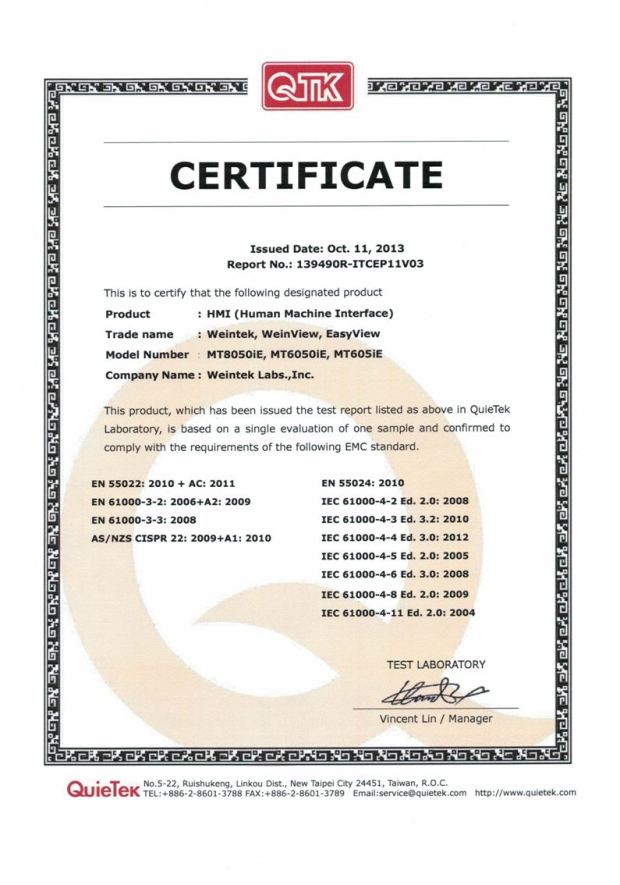

CE

UL

RoHS
