Product Brief - Model MT8071IE 7 Inch HMI, Atex, USB, Serial, Ethernet

7 Inch HMI, Atex, USB, Serial, Ethernet Port

picarrow 7" 800 x 480 TFT LCD, LED Backlight
arrow Fan-less Cooling System
arrow COM2 and COM3 RS-485 support MPI 187.5K
arrow Built-in Power Isolation
arrow NEMA4 / IP65 Compliant Front Panel
arrow ATEX Zone 2/22 Category 3 G/D


7" 800x480 Pixels HMI. Atex Zone 2/22, Modbus Protocol and PLC drivers refer to brochure. Uses Easybuilder Software for Screen Application development, 2x USB,3x Serial Port, Ethernet, requires cable for downloading applications. CUTOUT(WxH) 192x138mm


Click the button to view of overview of EasyView HMIs.


SPECIFICATIONS

Display

Display:
Brightness (cd/m2):
Contrast Ratio:
Color:
Resolution (WXH):
Back Light:
Back Light Life Time:

7" TFT Widescreen
500
500:1
65536
800x600
LED

>30 000 hr

Processor:

32bit RISC CPU 400MHz

Enclosure:

Plastic

Touch Panel

Touch Panel Type:

4-wire resistive type

Memory

Flash:
RAM (RAM):

128MB
64MB

I/O ports

SD Card Slot:
USB Host:
USB Client:
Ethernet Port:
COM Port:

AudioOutput:

Yes
USB 1.1 Port x 1
USB 2.0 Port x 1
10/100 Base-T
COM1(RS232 / RS485 2W/4W),
COM2(RS232),COM3(RS232/RS485 2W)
Yes

Power

Input Power:
Power Consumption:

24 ±20% Vdc
250mA@24Vdc

RTC:

Built-in

Specification

Panel Cutout (WXH):
Weight:

192x138mm
Approx 0.6kg

Operation

CE:
Atex
UL:
Voltage Resistance:
Isolation Resistance:
Vibration Endurance:
Protection Structure:

Storage Temperature:
Operating Temperature:
Operation Humidity:

CE Marked
Atex Zone 2/22 Category 3 G/D
cULus Listed
500 VAC (1 min)
Exceed 50MΩ at 500 Vdc
10 to 25 Hz (X,Y,Z direction 2g 30 minutes
UL Type 4X (indoor use only) / NEMA4 /
IP65 front panel
-20~60°C (-4°~140°F)

0°~50°C (32°~122°F)
10-90% RH (non-condense)


MECHANICAL DIMENSIONS

CERTIFICATION
(Click on Certificate to View)

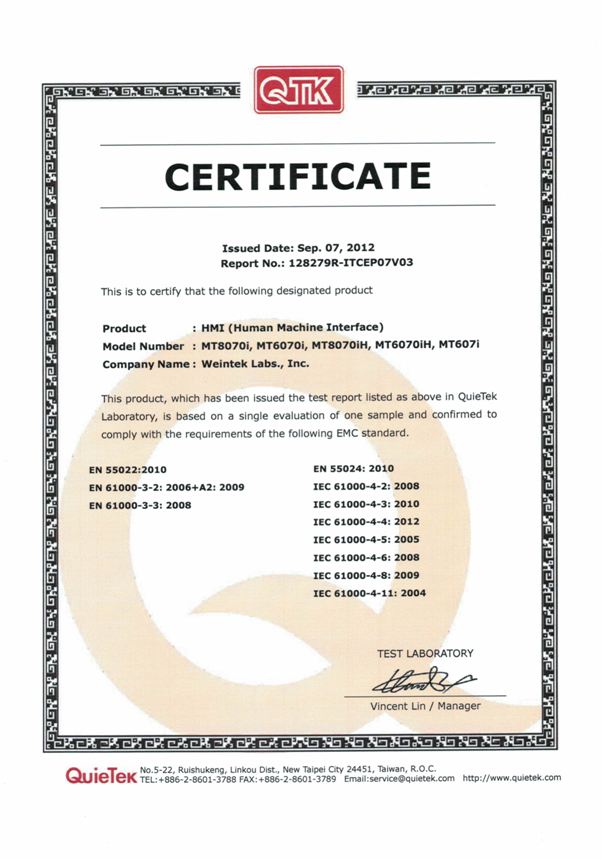

CE

UL

RoHS

Atex



Further Literature
EasyBuilder Pro User Manual in PDF (33.4MB)
EasyBuilder Pro User Manual
Installation Guide
Details of installation requirements and further specifications.
Atex Approval Certificate
Weintek HMI Atex Approval Certificates
EasyBuilder Pro Software Release Notes
Changes made to the software
