Product Brief - Model C1170 Omni8/16C 8 Channel IP Bd 90-150V Input

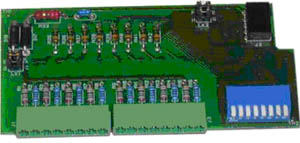

Omni8/16C 8 Channel IP Bd 90-150V Input

picarrow 8 Inputs individually isolated to 500Vrms
arrow Field to Logic Isolation of 1500Vrms
arrow Plug-in Terminals for easy maintenance
arrow Wide 90-150Vac/dc input operating range


Omni8/16C 8 Channel Isolated Input Board. Inputs from 90 to 150V ac/dc. This is a spare part. Order with annunciator, add option -3 if fitted to new Omni-8C/16C unit.


This Omni8/16C input board is designed for use in applications where the input source voltage is supplied external to the Omni8/16C. This module provides 1500Vac input to logic isolation and 500Vac inter channel isolation.

This input module should be used in applications where the Omni8/16C inputs need to be connected directly to electrical circuits such as ac powered contactors or relays, relay logic or interlocks etc. powered by 110Vac/dc. This allows the annunciator to be integrated into applications without the use of interposing relays.

The input sense selection (state of the input on/off for an alarm condition) is set via “DIP” switch and inputs are connected via plug-in terminals that allow easy disconnection of the module without disturbing the wiring.

Individually isolated inputs allow each input to be used in a different electrical circuit such as found in motor control circuits.

These boards should only be fitted by Omniflex trained service personnel.

To order this input board separately as a spare part, use Order Code C1170.

To order this input board as a factory-fitted option to a new Omni16C, add -3 to the Order Code.

Example:

To order a new Omni16C fitted with these inputs, order as follows:
Item 1. C1480 Annunciator :   Qty 1   Order code: C1480-3

The -3 option instructs the factory to fit these terminal boards to the annunciator.
