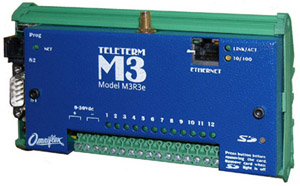

Product Brief - Model C2363A-34 Teleterm M3R4e RTU 9-30Vdc,920MHz Radio

Teleterm M3R4e RTU 9-30Vdc,920MHz Radio

picarrow 12 Configurable Inputs and Outputs
arrow SD Card logging
arrow 10/100 Ethernet
arrow 920MHz 1mW - 1 Watt Radio
arrow Low power operation

Programmable RTU, 920MHz 1mW-1W RADIO with 12 Universal I/O DI/DO/AI/AO, RS232/485 Modbus Master or Slave or Conet/s or Custom Protocol. Ethernet Port. Powered from 9-30Vdc. Battery backed Real Time Clock, ISaGRAF Ready; order CC030A-URTT to activate

The Teleterm M3 Series is a State of the art RTU range designed to expand the possibilities of remote monitoring and control by providing a cost effective platorm with a wide range of features.

Each unit comes with 12 universal I/O that can be configured for analogue or digital input or output according the application:
I/O 1 to 10 can be Digital Input, Digital Output, Analogue Input.

I/O 11 and 12 can be Digital Input, Analogue Input or Analogue Output.

The on-board RS232/485 port can be used to acquire data from third party devices using either the Modbus Protocol or a custom "plug in" protocol.

An SD memory Card is also included for local data logging applications.

Communications and Programming options differentiate one unit from another.

The C2363A-34 has the following features:

  • 12 I/O universal
  • RS232/RS485 Port
  • 920MHz 1mW - 1 Watt Radio
  • IEC61131-3 programming using ISaGRAF (optional)

Further Literature
Full specifications and Order Information
User Manual
User Manual in PDF
Installation Guide
Details of installation requirements and further specifications.
