Product Brief - Model M1249A MX RIO R3c

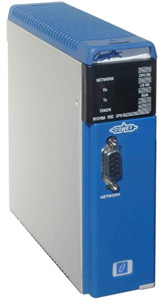

Maxiflex R3c Remote I/O Scanner

picarrow Designed specifically to add Remote IO to Maxiflex Systems
arrow System sizes from 2 to 15 I/O modules per Processor
arrow Easy configuration using free software utility
arrow CONET Network port for connection to Master Controller
arrow Automatic I/O module identification and scanning
arrow RS232/485 Serial Port for Third Party Communications


Maxiflex Remote I/O Scanner fitted to remote I/O Racks in CPU Slot. Used with M1593A Remote I/O controller fitted in any I/O Slot on the Controller Rack with up to seven Maxiflex remote I/O Bases connected to the Maxiflex Master Controller Base.


The MAXIFLEX R3c I/O Scanner is designed specifically for adding remote I/O to Maxiflex Systems. R3c differs from R2c in that it has a program port and serial port.

The R3c I/O Scanner is placed in the CPU slot of the Remote I/O Base.

This I/O Scanner automatically scans all I/O on its Base, and communicates this data with the Maxiflex M1593A Remote I/O Link Controller in the Master Base, making the remote I/O data available in the Master CPU's "Data Interchange Table (DIT)".

Up to 3 Remote I/O Bases, each with its own M1249A I/O Scanner can be connected to a single Master CPU Base, making a total of 1000 I/O accessible from the Master CPU.

The R3c CPU automatically identifies the presence of I/O modules and performs I/O scanning of these modules, making this data available to the Remote I/O Link Controller in the Master Base without the need for any programming.

The data link to the Maxiflex Remote I/O Link Controller operates on the Conet data highway, providing an event-driven token-passing ruggedised industrial network capable of running up to 10km.

This allows remote I/O Bases equipped with the Maxiflex M1249A I/O Scanner to be placed in the same panel as the Master Controller, or distributed across the site up to 10km away.
