Product Brief - Model cMT-iV5 cMT-IV5

cMT-iV5 9.7 inch Display Ethernet

picarrow 9.7" 1024 x 768 TFT LCD, LED Backlight
arrow Fan-less Cooling System
arrow Built-in 512 MB Flash Memory
arrow One Gigabit Ethernet Port
arrow Built-in mono speaker
arrow Built-in Power Isolator


Ethernet Display used with cMT-SVR units for distributed field devices integrated on Ethernet Network.


SPECIFICATIONS



Display

Display:
Brightness (cd/m2):
Contrast Ratio:
Color:
Resolution (WXH):
Back Light:
Back Light Life Time:

9.7" TFT LCD
350 cd/m2
500:1
262k
1024x768
LED
50 000 hr.

Touch Panel

Touch Panel Type:

Tampered glass, Capacitive type

Memory

Flash:
RAM:

512MB D.O.M
1 GB

I/O ports

SD Card Slot:
USB Host:
USB Client:
Ethernet Port:
COM Port:
Video Input:
Audio:

N/A
N/A
N/A
10/100/1000 Base-T
N/A
N/A
Built-in Mono Speaker

Power

Input Power:
Power Consumption:

24 ±10% VDC
900mA@24VDC

RTC:

Built-in

Specification

Panel Cutout (WXH):
Weight:

250x192mm
Approx 0.7kg

Operation

CE:
FCC:
UL:
Voltage Resistance:
Isolation Resistance:
Vibration Endurance:
Protection Structure:
Storage Temperature:
Operating Temperature:
Operation Humidity:

CE Marked
-
cULus Listed
500 VAC (1 min)
Exceed 50MΩ at 500 Vdc
10 to 25 Hz (X,Y,Z direction 2g 30 minutes
IP65 front panel (O ring seal)
-20~60°C (-4°~140°F)
0°~50°C (32°~122°F)
10-90% RH (non-condense)

MECHANICAL DIMENSIONS

CERTIFICATION
(Click on Certificate to View)

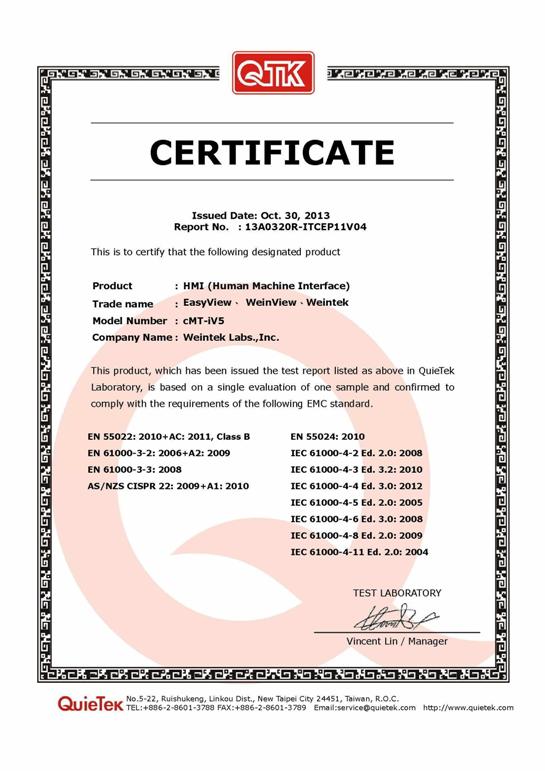

CE

UL

RoHS
