FOR IMMEDIATE RELEASE

Water Quality Monitoring Compliance

Continuous water quality as part of Environmental responsibility is a key element to factories. Omniflex provides a cost effective solution to these requirements.

Water quality as part of Environmental responsibility are a key element to triple bottom line reporting with water licensee operators needing to provide data for licensing authorities and compliance data for reporting. Omniflex has tackled the challenges for this type of remote monitoring application head on and has dealt with a number of key issues:

  • Remote unprotected and unmanned sites
  • Solar Powered
  • Vandal Proofing
  • Automated operation

The project for a very large mining operation required that monitoring systems be installed at key sites geographically spread over a few hundred square kilometers to track waste water and mine water outflows back to the riparian system. This is primarily to ensure that the mine has a complete view of its discharge and treatment of waste water over its entire operation. Data collected was to be shared internally across the enterprise to processing plants and to a GIS system for open reporting and to Department of Water Affairs.

Measurements at remote site

Any analytical measurements required can be incorporated into the system; typically the following are required:

  • Flow Rate
  • Totalised Flow
  • Dissolved Oxygen
  • pH
  • Conductivity
  • Turbidity

All four prerequisites (remote site, fully automated, solar powered and vandal-proof enclosures) were required for the client to manage data across the organization and satisfy their management objectives.

Omniflex provides a cost effective adaptable and extensible solution from single point small system to large corporate enterprise monitoring allowing the integration of existing equipment and legacy systems. At the same time, it provides the management tools to manage an aggregated view of the enterprise without the labour intensive capture and collation process. The system also enables automated reporting for compliance management and driving the environmental action plan reporting

The Outstation - Remote Terminal Unit

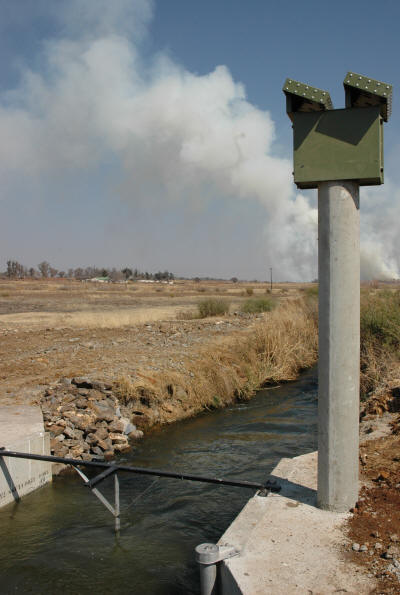

Typical Unsupervised Remote Site

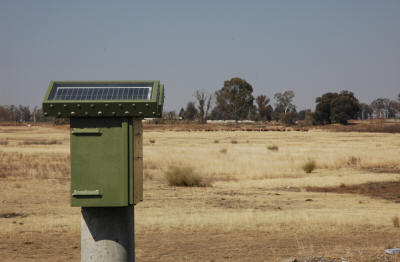

Solar Powered Vandal Proof Enclosure

Please click here to see our Blog on "Vandal Proof Enclosures" using  Solar technology and click here to see our range of M3 Series Remote Terminal Units.
