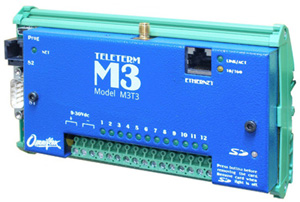

Product Brief - Model C2363A-53 Teleterm M3T3 RTU 9-30Vdc,868MHz Radio

Teleterm M3T3 RTU 9-30Vdc,868MHz Radio

picarrow 12 Configurable Inputs and Outputs
arrow SD Card logging
arrow Programmable in IEC61131-3 using ISaGRAF (optional)
arrow 10/100 Ethernet
arrow 868MHz Radio Port (licence free band)
arrow Low power operation


Teleterm Programmable RTU, 868MHz RADIO,10/100 ETHERNET, 12 Universal I/O DI/DO/AI/AO, RS232/485 Modbus Master, Slave or Conet/s or Custom Protocol. Powered from 9-30Vdc. Battery backed Real Time Clock, ISaGRAF Ready; order CC030A-URTT to activate


The Teleterm M3 Series is a State of the art RTU range designed to expand the possibilities of remote monitoring and control by providing a cost effective platorm with a wide range of features.

Each unit comes with 12 universal I/O that can be configured for analogue or digital input or output according the application:
I/O 1 to 10 can be Digital Input, Digital Output, Analogue Input.
I/O 11 and 12 can be Digital Input, Analogue Input or Analogue Output.

The On board RS232/485 port can be used to acquire data from third party devices using either the Modbus Protocol or a custom "plug in" protocol.

An SD memory Card is also incorporated for local data logging applications.

Communications and Programming options differentiate one unit from another.

The C2363A-53 has the following features:

  • 12 I/O universal
  • Dual RS232/RS485 Ports
  • 10/100 ETHERNET Port
  • 868MHz Radio
  • IEC61131 Programming using ISaGRAF (optional)
