Omniflex Eases Mine Water License Compliance

Water Licenses require that the license holder will not harm the environment. Water quality is a key element requiring the operators to provide data to ensure compliance. Omniflex has tackled the challenges for this type of remote monitoring application.

Water Licenses carry a burden of proof that the license holder will not harm the environment and the riparian water system with its activities. This covers the use of water from the system and the responsible discharge of water back into the riparian system.  Water quality as part of Environmental responsibility is a key element to triple bottom line reporting with responsible water licensee operators needing to provide data for licensing authorities and compliance data for reporting. Omniflex has tackled the challenges for this type of remote monitoring application head on and has dealt with a number of key issues:

  • Remote un-protected and un manned sites
  • Solar Powered
  • Vandal Proofing
  • Automated operation 24/7/365
  • Enterprise aggregated data over large geographic areas
  • Maintained Historical Data
  • Early warning of accidental spillage/releases

This type of project requires monitoring systems be installed at key sites geographically to track wastewater and mine water outflows back to the riparian system ensuring that the mine has a complete view of its discharge and treatment of waste water over its entire operation. Data collected is shared internally across the enterprise to processing plants and to a GIS system for open reporting and to Department of Water Affairs for transparency.

Measurements at remote site

Any analytical measurements required can be incorporated into the system typically the following are required:

  • Flow Rate
  • Totalised Flow
  • Dissolved Oxygen
  • pH
  • Conductivity
  • Turbidity

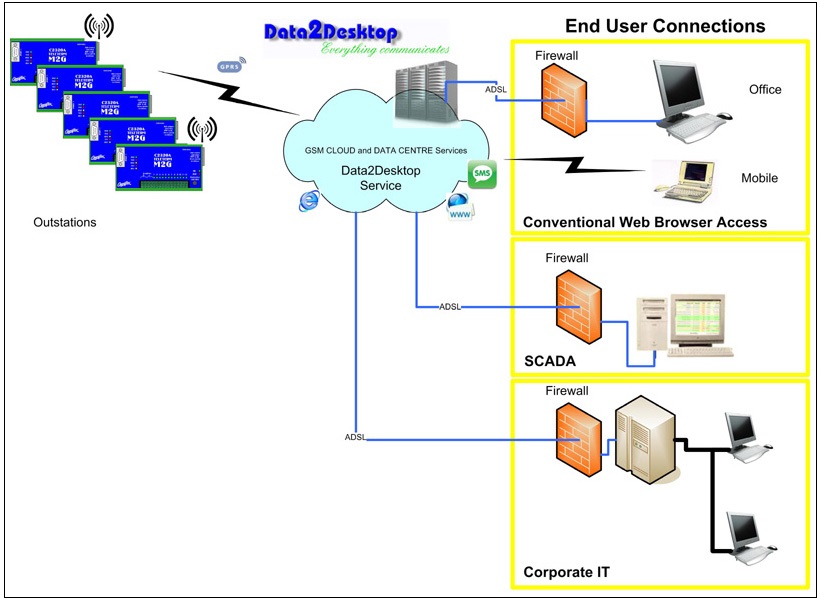

System Architecture

All three of the above architectures can be implemented as required for the client to manage data across the organization and satisfy their management objectives.

Management Objectives

Omniflex provides a cost effective adaptable and extensible solution from single point small system to large corporate enterprise monitoring allowing the integration of existing equipment and legacy systems but at the same time providing the management tools to manage an aggregated view of the enterprise without the labour intensive capture and collation process. Management are provided real time alerts for abnormal conditions and early warning of accidental spillages/releases through SMS or Push Email services ensuring the right people are advised of the system status. The system also enables automated reporting via email or manual download for compliance management, driving the environmental action plan reporting.

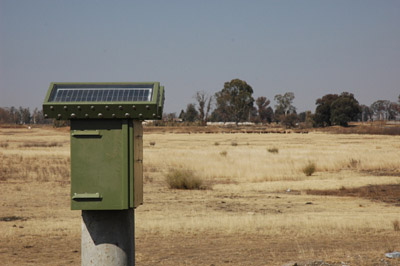

Typical unmanned, solar powered installation

Click here to view more information onour  web based monitoring solutions.
