Linearise all your signals with the Omniterm TFx

Signal Conditioners have progressed to include built-in protection and linearisation as front-ends for PLC and DCS control systems. Omniflex's TFx comes with built-in tank linearisations

Signal Conditioners have progressed over the years to become mainstream protection front ends for PLC and DCS control systems. Providing signal isolation and protection from the harsh plant conditions in marshalling and field termination cabinets keeping the control equipment in more controlled environment.

Sometimes though the analogue signal computations and required signal manipulation are better implemented in the signal loops closer to the process and this is where the Omniterm Function Synthesizer (TFX) comes to the fore with a host of features and functions.

Tank Linearization functions cover Cylindrical and Spherical Tanks but Non Uniform Tanks can be linearized with a 32 point strapping table.

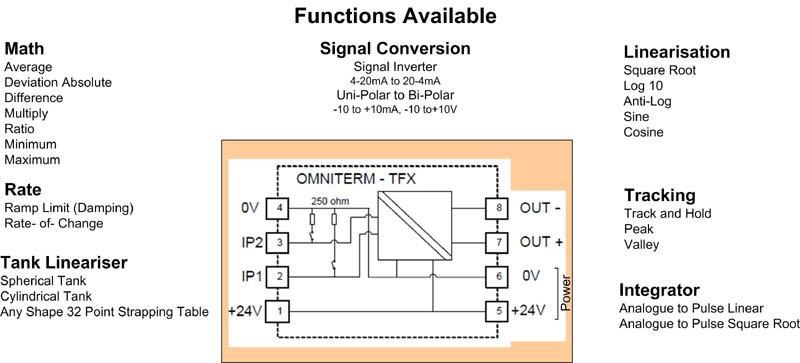

Omniterm TFx Functional Block Diagram

Features

  • SIL 1 Compliant IEC 61508
  • High Reliability MTBF of 44 years
  • 24Vdc Powered
  • Two Isolated Inputs 4-20mA or 10Vdc signals
  • Inputs converted to 16bit resolution
  • Power for Two Wire Transmitters
  • Input to Output isolation 1500V
  • Configurable universal output
  • Output Overload detection

Available Functions

  • Average
  • Deviation
  • Difference
  • Multiply
  • Ratio
  • Minimum
  • Maximum
  • Track and Hold
  • Peak
  • Valley
  • Rate or Change
  • Ramp Limited
  • Log Function
  • Square Root
  • Square Root Integration
  • Linearization 32 Point
  • Integrator Analogue to Pulses out
  • Frequency

Benefits

  • Field or Workshop Configurable
  • Free Configuration Software
  • Extremely Flexible Operation
  • 22.5mm Module width
  • DIP Switch Input and Output Range/Type Selection

These benefits make it ideally suited for a Special Function signal conditioner.

Click here for more information on the Omniterm TFx.
