Responsive Wireless I/O from Omniflex

Radio networks traditionally follow the Master and Slave methodology for data acquisition. Teleterm overcomes this by using Peer to Peer technology along with other features.

Radio networks traditionally follow the Master (main station node) and Slave (out station node) methodology for data acquisition. A single master polls for data from one or more slaves, depending on the network size. Polling is inefficient and if the master fails, the network fails.

Omniflex Teleterm M3 Series implements Responsive Wireless with the following advantages:

  • All Out Stations report automatically when they need to. i.e. Change of State or Set Limits reached
  • Faster more efficient reporting and better Control
  • Reduced Radio Noise
  • Fail Over Options for redundancy
  • Bi Directional Signals
  • Repeating capability for longer range

Teleterm M3 Series uses licence-free radio bands and is suitable for up to 15 km range. Connect directly to Scada or DCS via Ethernet. The system is ideal for short hop radio links such as:

  • Reservoir Monitoring
  • Tank Gauge Monitoring
  • Remote Pump Control
  • Dam Levels
  • Plant Utilities Reporting (Water, Air, Gas, Steam, Electricity)
  • Plant Condition Monitoring

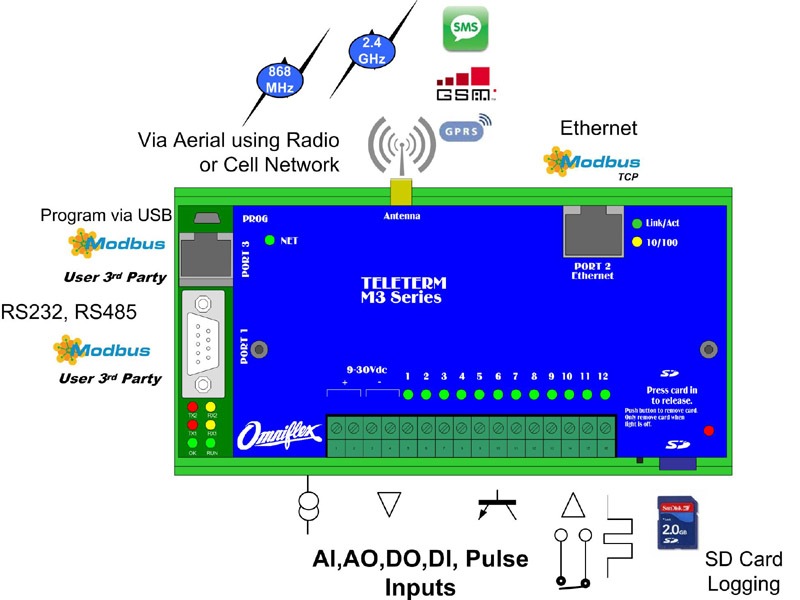

Teleterm M3 Series Capability Overview

Maximum I/O Flexibility – Mixed Inputs and Output Signals

Each Wireless Node allows any mix of 12 Configurable I/O

  • Digital Input
  • Digital Output
  • Analogue Input
  • Analogue Output

Programmable in IEC61131 5 Languages

Each Node can be programmed as a PLC or just used as a Data Acquisition node.

Benefits

  • Low Cost Implementation and cable saving
  • No Master Station required so no polling each outstation
  • Peer to Peer Communication simplifies point to point plant communications
  • Change of state(digital) trigger or cyclic(analogue) for communications
  • The network traffic is kept low so that only important data is transmitted.

These benefits make it ideally suited for data acquisition.

Solve all your Data Acquisition needs today!

Click here for more information on our Teleterm M3.
