21½ Inch HMI, USB, Serial, Ethernet Port, CAN Bus
  21.5" 1920 x 1080 Wide Viewing Angle (WVA) LCD
Quad-core RISC CPU
Tempered Glass, Capacitive Type Touchscreen
Fan-less Cooling System
Built-in 4 GB FLASH and 2 GB RAM
CAN Bus Support
COM1 RS-232 4W, COM3 RS-232 2W
COM2 RS-485 2W/4W, COM3 RS-485 2W, CAN Bus
21½" WVA 1920×1080 Pixels LCD HMI. Modbus and PLC drivers. Uses Easybuilder Software for Screen Application development, 2x Ethernet, 2 x USB and 2x Serial Port, requires cable for downloading applications. CUTOUT(WxH) 532x340mm
Click the button to view of overview of EasyView HMIs.
SPECIFICATIONS
|
Display
|
| Display: |
21.5" WVA (Wide Viewing Angle) LCD |
| Resolution: |
1280 x 1024 |
|
Brightness (cd/m2):
|
500 cd/m2
|
|
Contrast Ratio:
|
1000:1
|
| Backlight Type: |
LED |
| Backlight Lifetime: |
>30 000 hrs |
|
Color:
|
16.7 million
|
|
LCD Viewing Angle (T/B/L/R):
|
89/89/89/89
|
|
Pixel Pitch (mm):
|
0.24975 (H) x 0.24975 (V)
|
|
|
Touch Panel
|
|
Touch Panel Type:
|
Tampered Glass, Capacitive Type
|
| Hardness Scale: |
≥6H |
|
|
Memory
|
|
Flash:
|
4 GB
|
|
RAM (RAM):
|
2 GB
|
|
| Processor |
Quad Core RISC |
|
I/O ports
|
|
USB Host:
|
USB 2.0 x 2
|
|
USB Client:
|
N/A
|
|
Ethernet Port:
|
LAN 1: 10/100/1000 Base-T x 1
LAN 2: 10/100 Base-T x 1
|
| WiFi: |
N/A |
|
COMPort:
|
Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W, CAN Bus
Con.B: COM1 RS-232 4W, COM3 RS-232 2W*
|
| RS-485 Dual Isolation: |
N/A |
| CAN Bus: |
Yes |
| HDMI |
N/A |
|
Audio Output:
|
Built-in Mono Speaker
|
|
|
Power
|
|
Input Power:
|
24Vdc ±20%
|
| Power Isolation: |
Built-in |
| Power Consumption: |
1.8A @ 24Vdc |
| Voltage Resistance: |
500Vac (1 min.) |
|
Isolation Resistance:
|
Exceed 50MΩ at 500VDC
|
|
|
Specification
|
|
PCB Coating:
|
Yes |
| Enclosure: |
Aluminum |
| Dimension (WxHxD): |
546 x 354x 47.5 mm |
| Panel Cutout: |
530 x 340 mm |
| Mass: |
Approx. 5.5 kg |
|
Mount:
|
Panel mount, VESA mount 100 x 100 mm
|
|
|
Environment
|
|
Protection Structure:
|
UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel
|
|
Storage Temperature:
|
0° - 50°C (32° - 122°F)
|
|
Operating Temperature:
|
-20° - 60°C (-4° ~ 140°F)
|
|
Relative Humidity:
|
10% - 90% (non-condensing)
|
|
Vibration Endurance:
|
10 to 25Hz (X, Y, Z direction 2G 30 minutes)
|
|
| Certification |
| CE: |
CE marked
|
| UL Listed:: |
cULus Listed |
|
| Software |
| EasyBuilder Pro: |
V6.10.01 or later versions
|
| Weincloud: |
EasyAccess 2.0 (Optional), Dashboard (Optional) |
| |
|
| CODESYS® |
Optional* |
|
* Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
* CODESYS® is a trademark of CODESYS GmbH

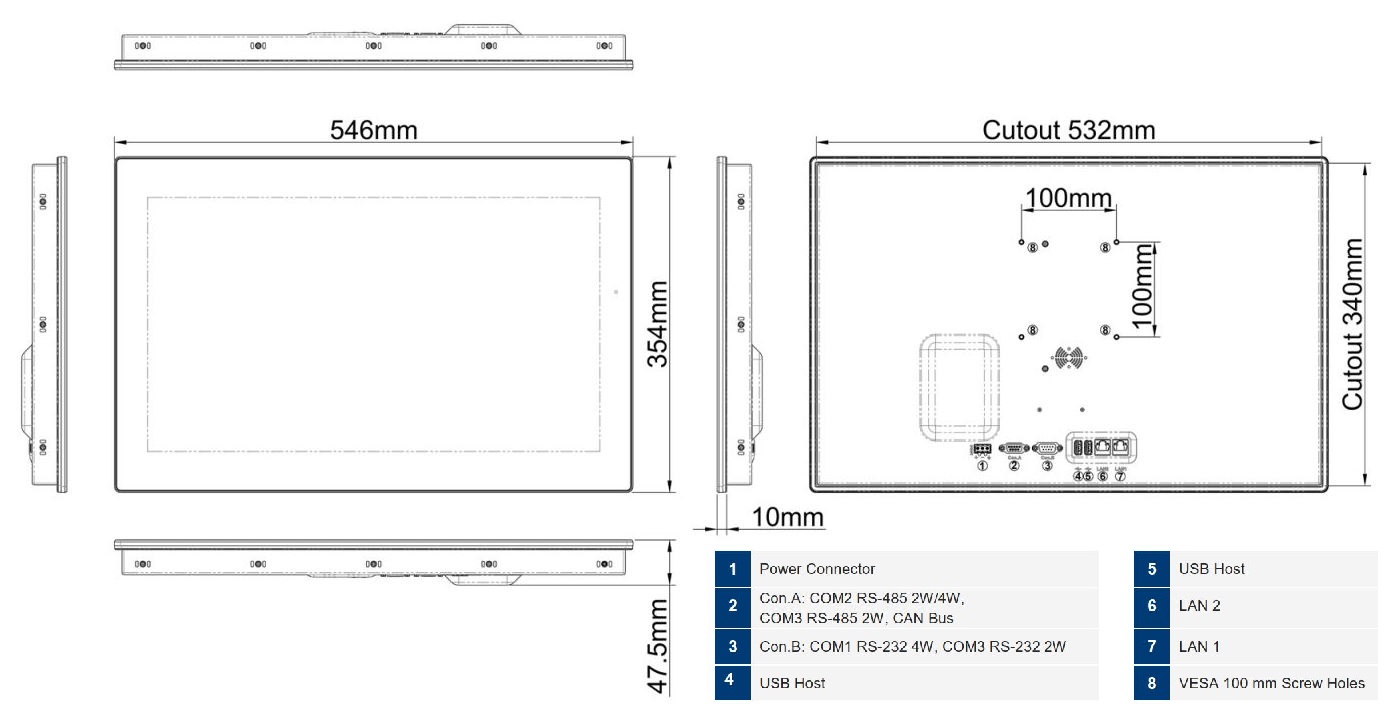

MECHANICAL DIMENSIONS
CERTIFICATION
(Click on Certificate to View)
|

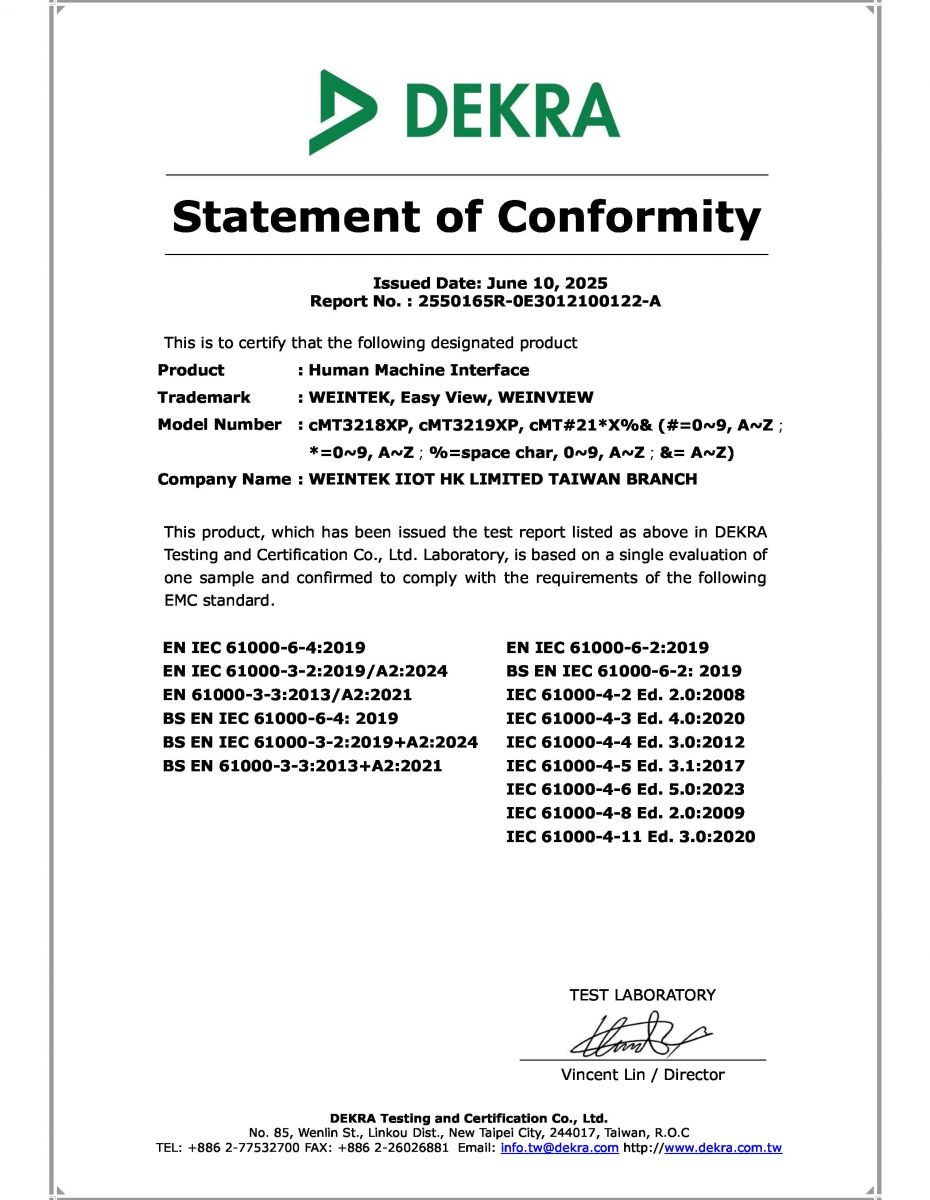

UK Statement of Conformity
|

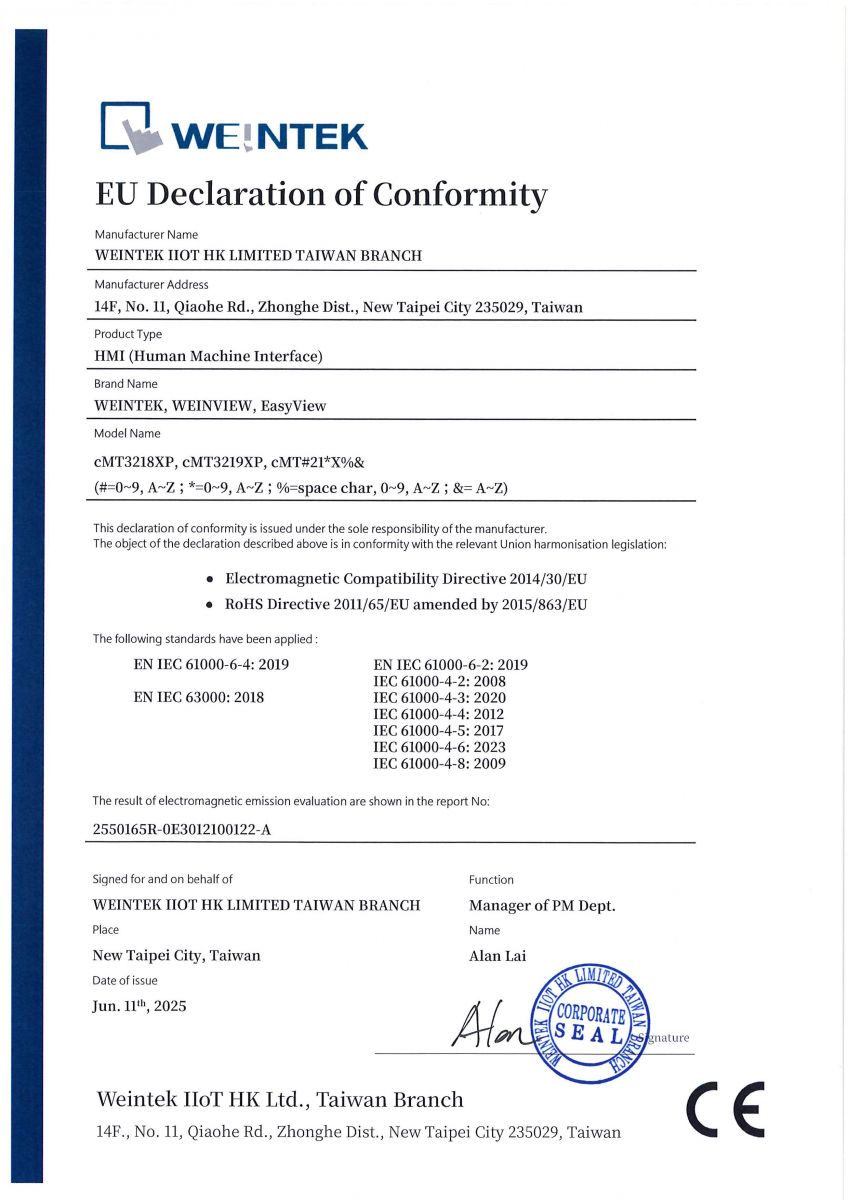

EU Declaration of Conformity
|

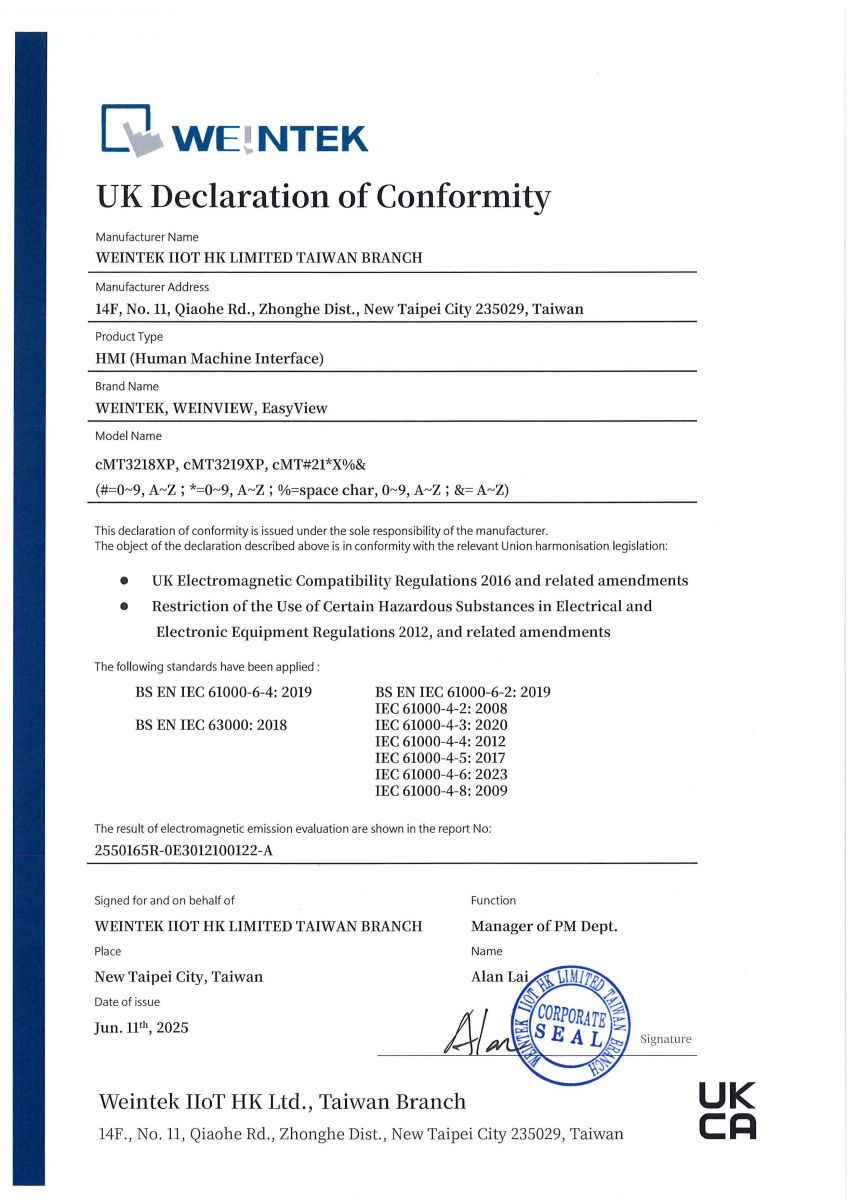

UK Declacration of Conformity
|

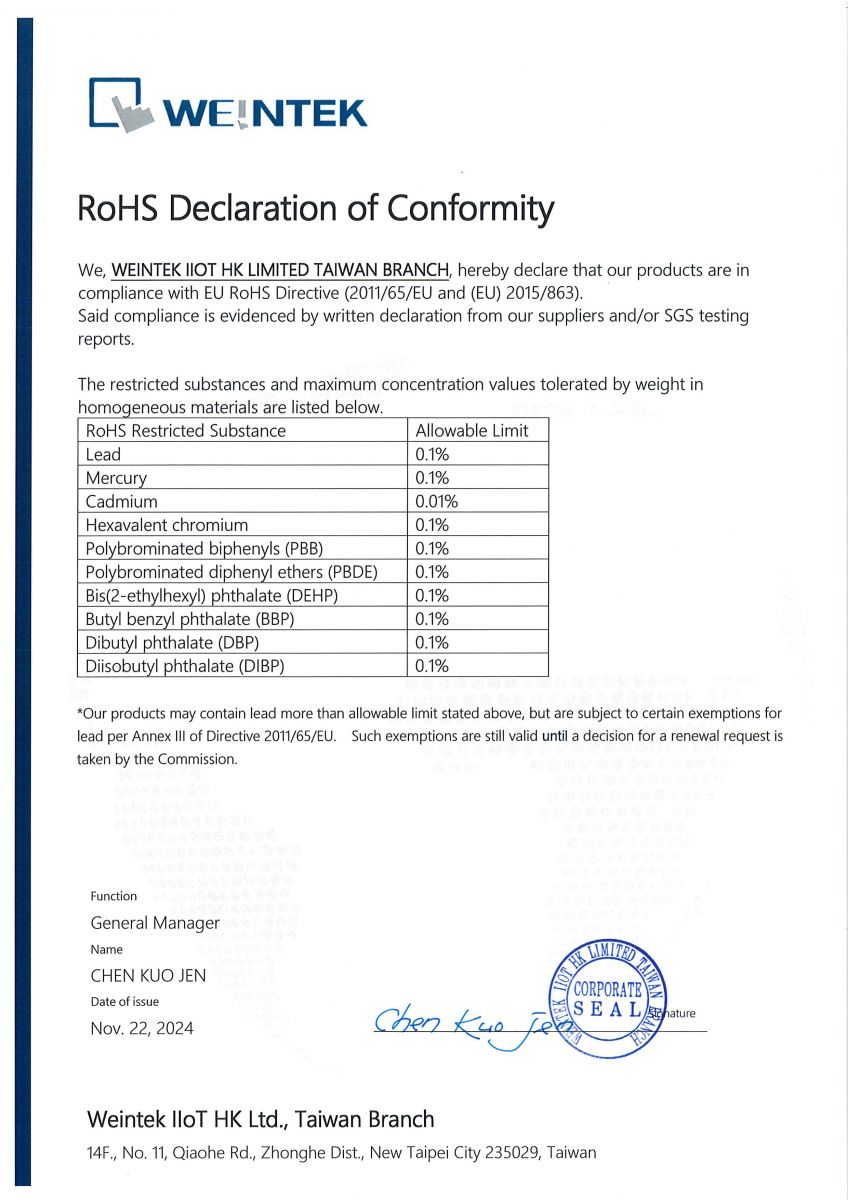

RoHS Certificate |
 |
 |
 |
 |
|
|
