10.1 Inch HMI, USB, Serial, Ethernet Port, CAN Bus
  10.1" 1024 x 600 TFT LCD, LED Backlight
Built- in 4GB Flash Memory and RTC
COM2 and COM3 RS-485 support MPI 187.5K,
CAN Bus Supports CANopen, CAN Bus 2.0A/2.0B and SAE J1939
Fan-less Cooling System
PCB coating process ensures high reliability to resist from corrosion in ha
Built-in Power Isolation
NEMA4 / IP66 Compliant Front Panel
Compatible with M02 WiFi Expansion Module that supports wireless communicat
10.1" 1024x600 Pixels. Modbus and PLC drivers refer brochure. Uses Easybuilder Software for Screen Application development, 2x Ethernet, 1x USB and 2x Serial Port, 1x CAN Bus, requires prog cable for downloading applications. CUTOUT(WxH) 260x202mm
Click the button to view of overview of EasyView HMIs.
SPECIFICATIONS
|
Display
|
| Display: |
10"TFT |
| Resolution: |
1024 x 600 |
|
Brightness (cd/m2):
|
350 cd/m2
|
|
Contrast Ratio:
|
500:1
|
| Backlight Type: |
LED |
| Backlight Lifetime: |
>50 000 hrs |
|
Color:
|
16.7 million
|
|
LCD Viewing Angle (T/B/L/R):
|
70/70/80/80
|
|
Pixel Pitch (mm):
|
0.2175 (H) x 0.2088 (V)
|
|
|
Touch Panel
|
|
Touch Panel Type:
|
4 wires resistive type
|
| Accuracy: |
Active Area Length(X)±2%, Width(Y)±2% |
|
|
Memory
|
|
Flash:
|
4 GB
|
|
RAM (RAM):
|
1 GB
|
|
| Processor |
Quad Core RISC |
|
I/O ports
|
|
SD Card Slot:
|
N/A
|
|
USB Host:
|
USB 2.0 x 1
|
|
USB Client:
|
N/A
|
|
Ethernet Port:
|
LAN 1: 10/100/1000 Base-T x 1
LAN 2: 10/100 Base-T x 1
|
| WiFi: |
M02 WiFi Expansion Module (Optional) |
|
COMPort:
|
Con.A:COM2 RS-485 2W/4W,COM3 RS-485 2W, CAN Bus
Con.B: COM1 RS-232 4W, COM3 RS-232 2W*
MPI is not supported.
|
| RS-485 Dual Isolation: |
N/A |
| CAN Bus: |
Yes |
| HDMI |
N/A |
|
Audio Output:
|
N/A
|
|
|
Power
|
|
Input Power:
|
24Vdc ±20%
|
| Power Isolation: |
Built-in |
| Power Consumption: |
1A @ 24Vdc |
| Voltage Resistance: |
500Vac (1 min.) |
|
Isolation Resistance:
|
Exceed 50MΩ at 500VDC
|
|
|
RTC
|
Built-in
|
|
Specification
|
|
PCB Coating:
|
Yes |
| Enclosure: |
Plastic |
| Dimension (WxHxD): |
271 x 213 x 38 mm |
| Panel Cutout: |
260 x 202 mm |
| Mass: |
Approx. 1.2 kg |
|
Mount:
|
Panel mount, VESA mount 75 x 75 mm
|
|
|
Environment
|
|
Protection Structure:
|
NEMA4 / IP66 Compliant Front Panel
|
|
Storage Temperature:
|
-20° - 60°C (-4° - 140°F)
|
|
Operating Temperature:
|
0° ~ 50°C (32° ~ 122°F)
|
|
Relative Humidity:
|
10% ~ 90% (non-condensing)
|
|
Vibration Endurance:
|
10 to 25Hz (X, Y, Z direction 2G 30 minutes)
|
|
| Certification |
| CE: |
CE marked
|
| UL Listed:: |
cULus Listed |
|
| Software |
| EasyBuilder Pro: |
V6.05.02 or later versions
|
| Weincloud: |
EasyAccess 2.0 (Optional), Dashboard (Optional) |
| CODESYS® |
Optional* |
|
* Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
* Dashboard requires EasyBuilder Pro V6.06.01 or later versions.
* CODESYS® is a trademark of 3S-Smart Software Solutions GmbH
MECHANICAL DIMENSIONS

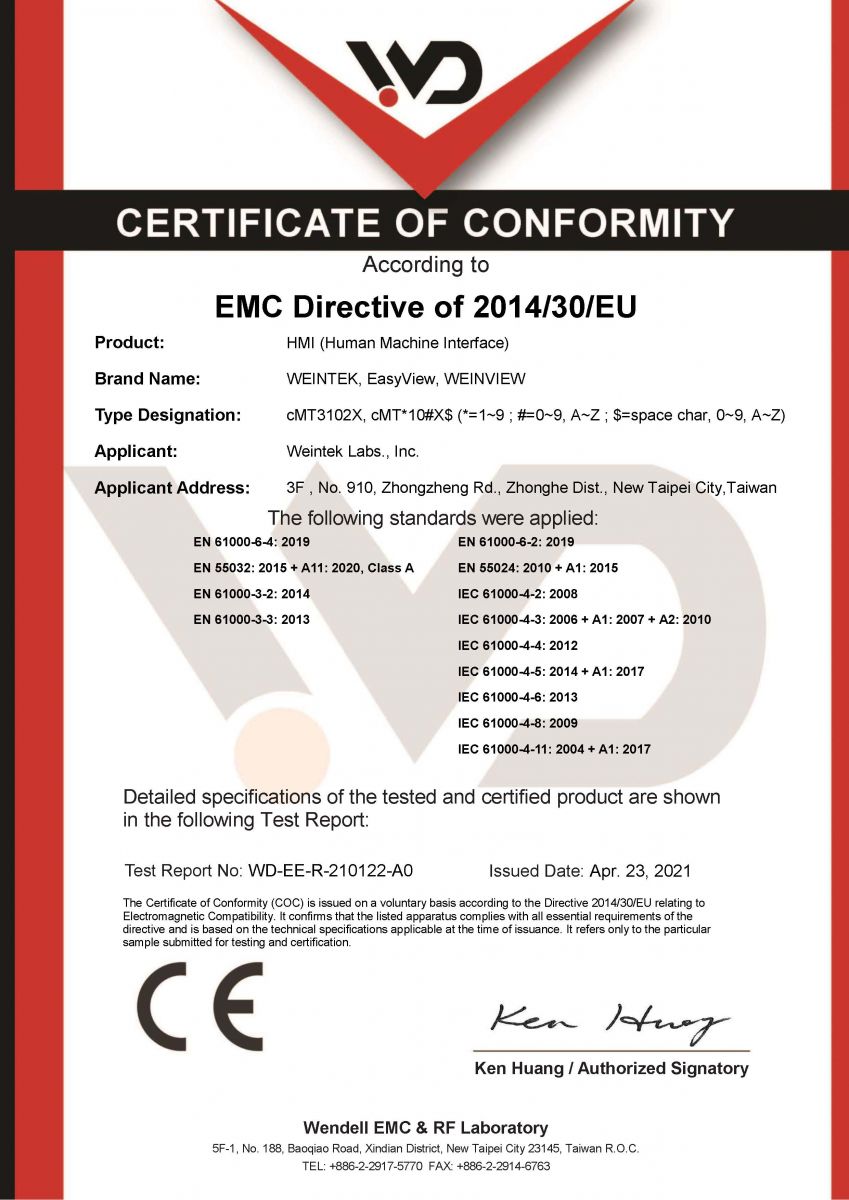

CERTIFICATION
(Click on Certificate to View)
|
|
