15 Inch HMI, USB, Serial, Ethernet Port
  15" 1024 x 768 VA (Vertical Alignment) LCD
Quad-core Cortex-A17 CPU with High Performance dedicated 3D Processor
Fan-less Cooling System
Built- in 4GB Flash Memory and RTC
SD Card Slot Supports SD/SDHC Cards
Built-in Power Isolator
NEMA4/IP66 Compliant Front Panel
15" 1024x768 Pixels HMI. Modbus and PLC drivers. Uses Easybuilder Software for Screen Application development, 2x Ethernet, 1 x USB and 2x Serial Port, SD Slot, requires cable for downloading applications. CUTOUT(WxH) 352x279mm
Click the button to view of overview of EasyView HMIs.
SPECIFICATIONS
|
Display
|
| Display: |
15" VA (Vertical Alignment) Screen |
| Resolution: |
1024 x 768 |
|
Brightness (cd/m2):
|
350 cd/m2
|
|
Contrast Ratio:
|
2500:1
|
| Backlight Type: |
LED |
| Backlight Lifetime: |
>70 000 hrs |
|
Color:
|
16.2 million
|
|
LCD Viewing Angle (T/B/L/R):
|
88/88/88/88
|
|
Pixel Pitch (mm):
|
0.297 (H) x 0.297 (V)
|
|
|
Touch Panel
|
|
Touch Panel Type:
|
4 wires resistive type
|
| Accuracy: |
Active Area Length(X)±2%, Width(Y)±2% |
|
|
Memory
|
|
Flash:
|
4 GB
|
|
RAM (RAM):
|
1 GB
|
|
| Processor |
Quad Core RISC |
|
I/O ports
|
|
SD Card Slot:
|
SD/SDHC
|
|
USB Host:
|
USB 2.0 x 1
|
|
USB Client:
|
N/A
|
|
Ethernet Port:
|
LAN 1: 10/100/1000 Base-T x 1
LAN 2: 10/100 Base-T x 1
|
|
COMPort:
|
Con.A:COM2 RS-485 2W/4W,COM3 RS-485 2W
Con.B: COM1 RS-232 4W, COM3 RS-232 2W*
MPI is not supported.
|
| RS-485 Dual Isolation: |
N/A |
| CAN Bus: |
N/A |
| HDMI |
N/A |
|
Audio Output:
|
Built-in Mono Speaker
Audio Line Out - 3.5mm jack x 1
|
|
|
Power
|
|
Input Power:
|
24Vdc ±20%
|
| Power Isolation: |
Built-in |
| Power Consumption: |
1.3A @ 24Vdc |
| Voltage Resistance: |
500VAC (1 min.) |
|
Isolation Resistance:
|
Exceed 50MΩ at 500VDC
|
|
|
RTC
|
Built-in
|
|
Specification
|
|
PCB Coating:
|
Yes |
| Enclosure: |
Aluminium |
| Dimension (WxHxD): |
366 x 293 x 48.2 mm |
| Panel Cutout: |
352 x 279 mm |
| Mass: |
Approx. 2.74 kg |
|
Mount:
|
Panel mount, VESA mount 75 x 75 mm
|
|
|
Environment
|
|
Protection Structure:
|
UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel
|
|
Storage Temperature:
|
-20° - 60°C (-4° - 140°F)
|
|
Operating Temperature:
|
0° ~ 50°C (32° ~ 122°F)
|
|
Relative Humidity:
|
10% ~ 90% (non-condensing)
|
|
Vibration Endurance:
|
10 to 25Hz (X, Y, Z direction 2G 30 minutes)
|
|
| Certification |
| CE: |
CE marked
|
| UL Listed:: |
cULus Listed |
|
| Software |
| EasyBuilder Pro: |
V6.05.02 or later versions
|
| Weincloud: |
EasyAccess 2.0 (Optional), Dashboard (Optional) |
| CODESYS® |
Optional* |
|
* Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
* Dashboard requires EasyBuilder Pro V6.06.01 or later versions.
* CODESYS® is a trademark of 3S-Smart Software Solutions GmbH.

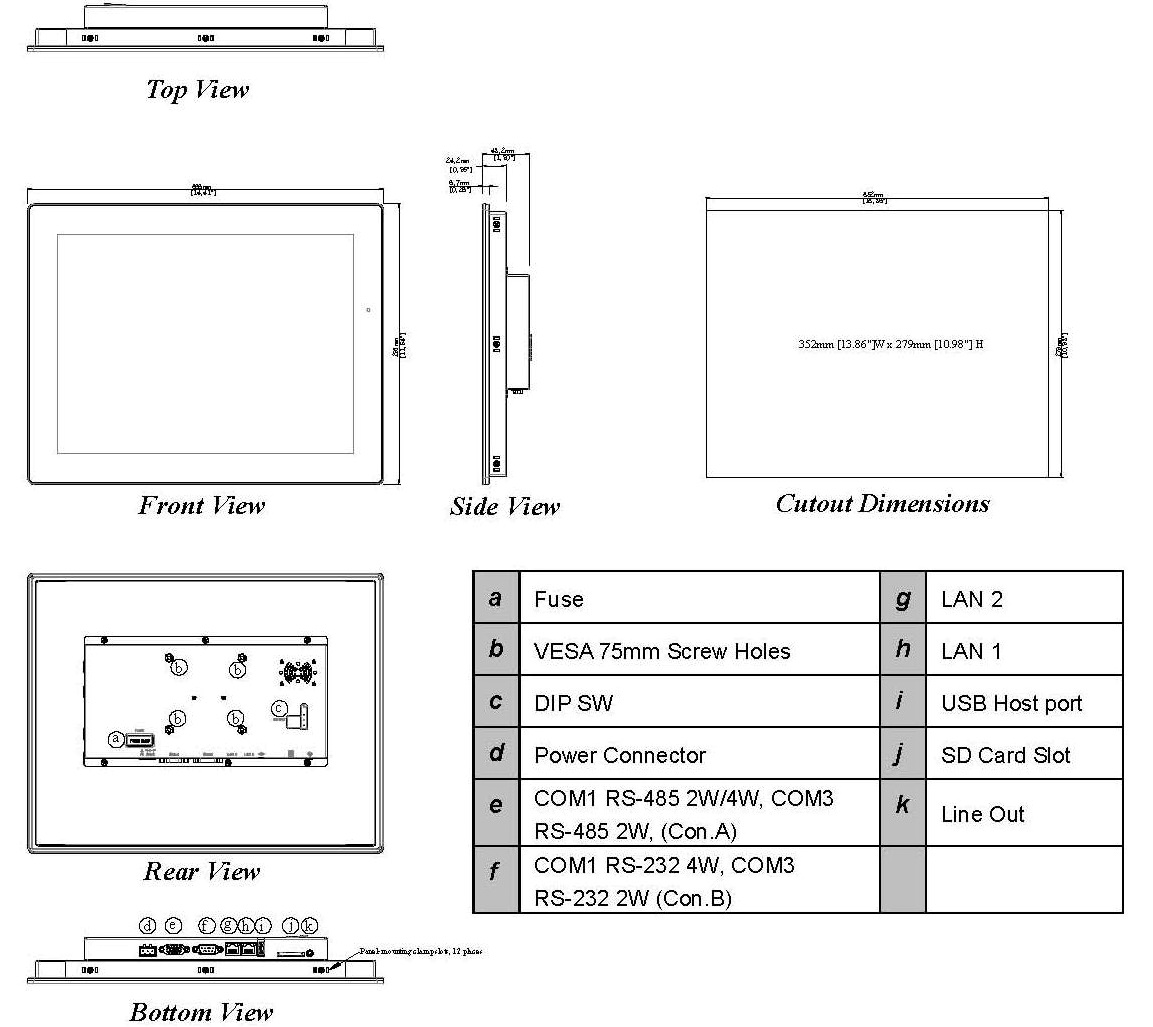

MECHANICAL DIMENSIONS

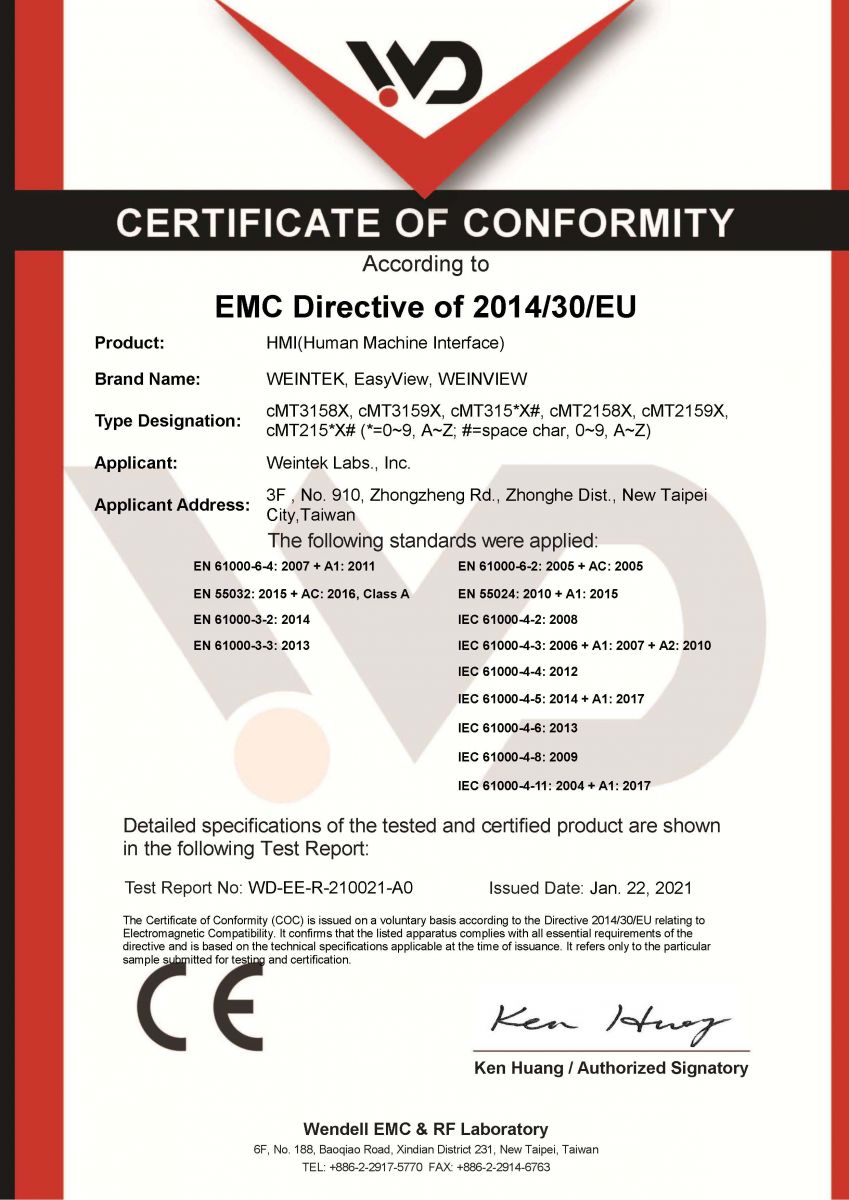

CERTIFICATION
(Click on Certificate to View)
|
|
