HDMI DisplayDrvr USB,Serial,Ethernet
  Quad-core CPU with High Performance dedicated 3D Processor
Plays video in high resolution, video decode 1080p H.264
Supports customized resolution for 16:9 / 4:3 LCD monitor
Compact Design and DIN-rail Mount
Fan-less Cooling System
Built- in 4GB Flash Memory and RTC
One USB Host Port
Gigabit Ethernet Port
Supports MPI 187.5K
Built-in Power Isolator
Full HD 1080p High Resolution HDMI Output
Full HDMI Driver. Modbus and PLC drivers refer brochure. Uses EasybuilderPro Software for Screen Application development, 2x Ethernet, 1x USB and 3x Serial Port, download applications via Ethernet. DIN Rail mount(WxHxD) 30x130x115mm
SPECIFICATIONS
|
Memory
|
| Flash: |
4 GB |
| RAM (RAM): |
1 GB |
|
| Processor |
Quad Core RISC |
|
I/O ports
|
| SD Card Slot: |
N/A |
| USB Host: |
USB 2.0 x 1 |
| USB Client: |
N/A |
| Ethernet Port: |
LAN 1: 10/100/1000 Base-T x 1
LAN 2: 10/100 Base-T x 1 |
| COMPort: |
Con.A:COM2 RS-485 2W/4W,COM3 RS-485 2W
Con.B: COM1 RS-232 4W, COM3 RS-232 2W*
MPI is not supported. |
| RS-485 Dual Isolation: |
N/A |
| CAN Bus: |
N/A |
| HDMI |
Customizable (max. resolution 1920 x 1080) |
Recommended Resolutions
(Please use these recommended
screen resolutions to avoid
compatibility issues.) |
720x480
720x576
800x600
1024x768
1280x720
1366x768
1920x1080 |
| Audio Output: |
HDMI Audio Output |
|
|
Power
|
| Input Power: |
24Vdc ±20% |
| Power Isolation: |
Built-in |
| Power Consumption: |
850mA @ 24Vdc |
| Voltage Resistance: |
500VAC (1 min.) |
| Isolation Resistance: |
Exceed 50MΩ at 500VDC |
|
| RTC |
Built-in |
|
Specification
|
| PCB Coating: |
Yes |
| Enclosure: |
Plastic |
| Dimension (WxHxD): |
29.8 x 130 x 115 mm |
| Mass: |
Approx. 0.24 kg |
| Mount: |
35mm DIN rail mount |
|
|
Environment
|
| Protection Structure: |
IP20 |
|
Storage Temperature:
|
-20° - 60°C (-4° - 140°F)
|
|
Operating Temperature:
|
0° ~ 50°C (32° ~ 122°F)
|
| Relative Humidity: |
10% ~ 90% (non-condensing) |
| Vibration Endurance: |
10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
|
| Certification |
| CE: |
CE marked |
| UL Listed:: |
cULus Listed |
|
| Software |
| EasyBuilder Pro: |
V6.07.02 or later versions |
| Weincloud: |
EasyAccess 2.0 (Optional), Dashboard (Optional) |
| CODESYS® |
Optional* |
|
* The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc.
* CODESYS® is a trademark of 3S-Smart Software Solutions GmbH.
MECHANICAL DIMENSIONS

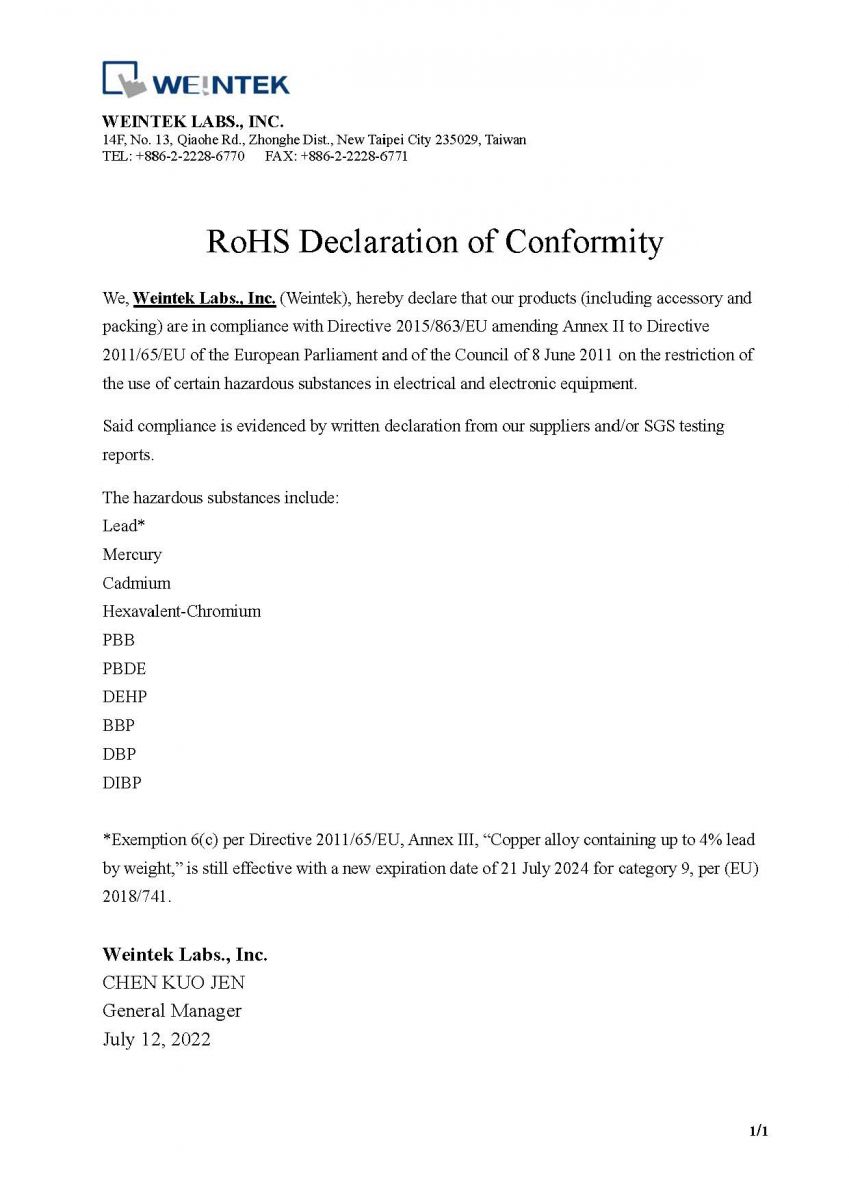

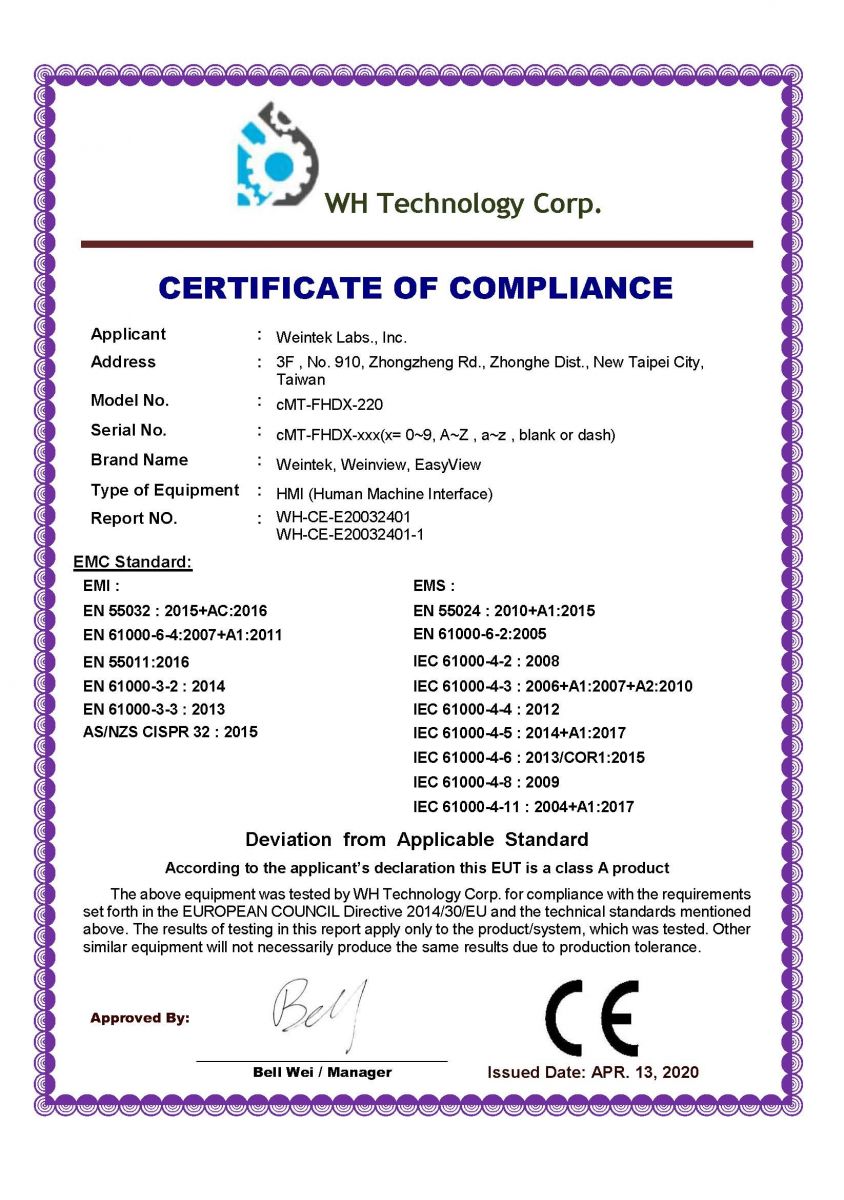

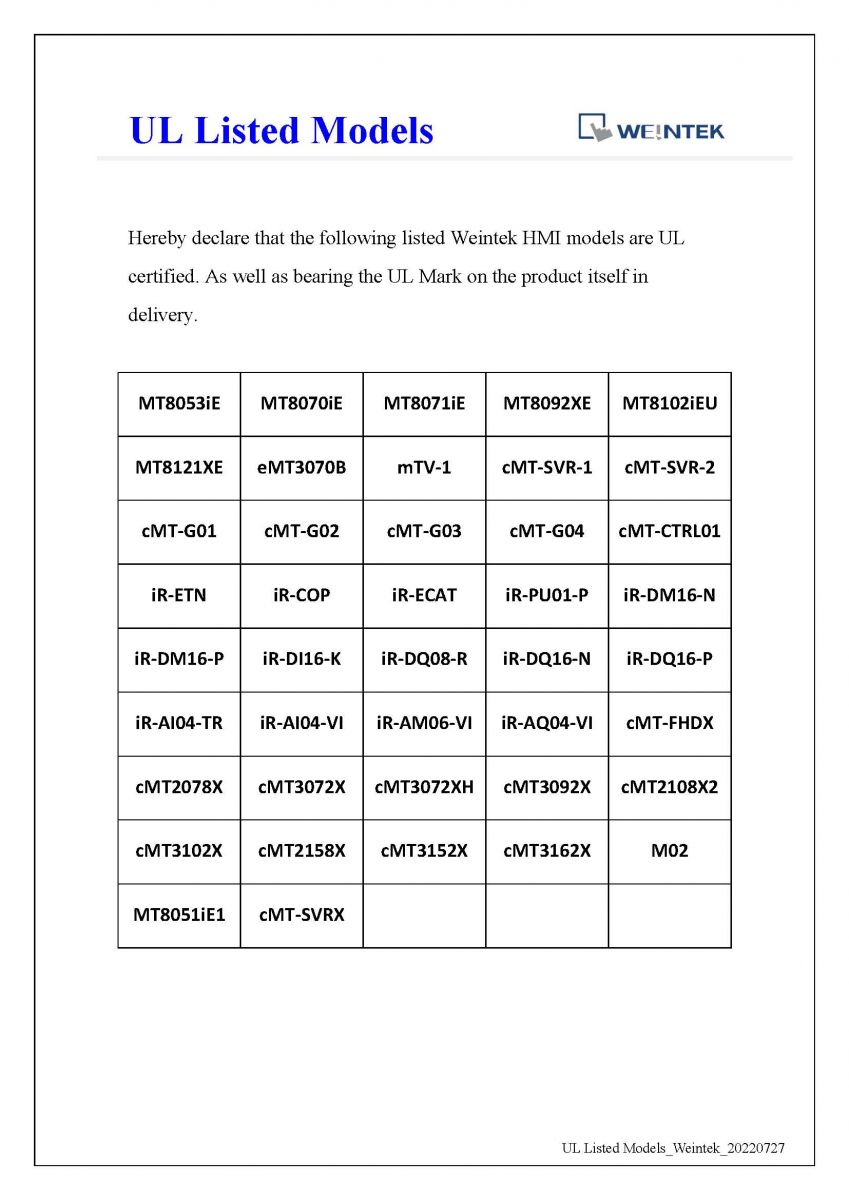

CERTIFICATION
(Click on Certificate to View)
|
|
