Integrate all your fixed radiation monitors to a
building or site-wide SCADA system using
Maxiflex
Proven remote I/O with experience in nuclear
applications. |
|
|
Integrate different Radiological Monitors
Integrate any monitor into SCADA
Future-proof modular design
Local
and Wide area network support
High
reliability redundant display |
Site-wide Integrated Radiological
Monitoring |
Download
System Brochure:
 Click here
|
|
Radiological Surveillance |
The Maxiflex system is designed to provide a cost effective and
flexible means of networking any radiation monitor to a
building or site-wide SCADA system.
Maxiflex is modular in design and can accommodate
any type of digital or analogue signal, together with distributed
intelligent communications modules. The intelligent radiation
monitor interfaces makes Maxiflex an ideal system to distribute around the building or site.

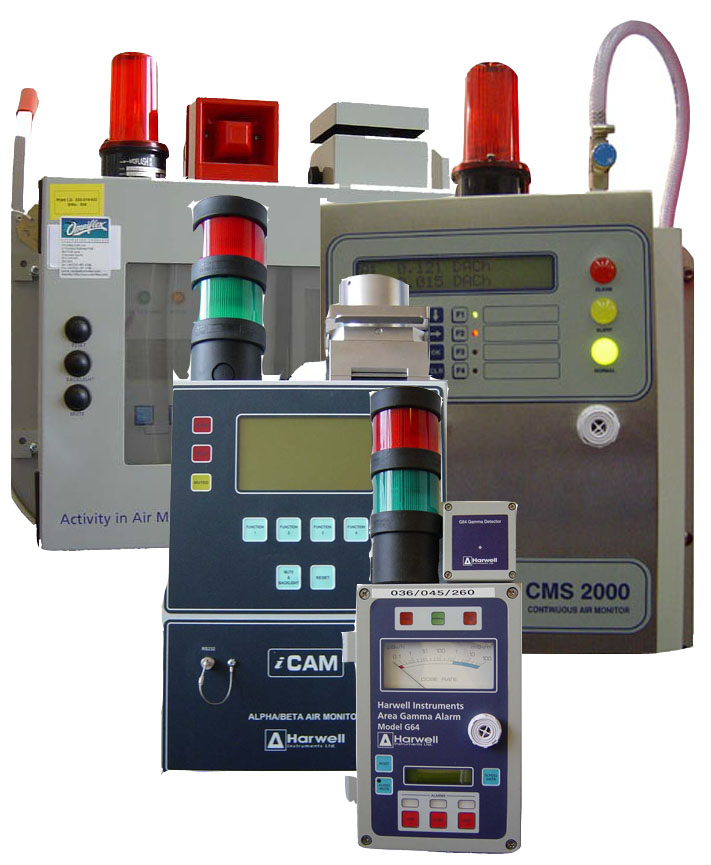

Interfaces currently exist
for Harwell 3230, Harwell 3280, Harwell AB96, Harwell G64, Harwell ICAM,
and Lab Impex CMS2000. We are adding to the list all the time. Check
with us for the existence of your monitor, if it is not listed here.
A mix
of communications media may be applied to suit the site including
Ethernet, Conet/c
(any grade of 2 core cable up to 10kms without the need for repeaters),
Modbus, PSTN, GSM and Radio.
|
|
Alarm and Event
Management |
In many installations there is a requirement for an
independent real-time Alarm management system. The Maxiflex
system incorporates an alarm handling capability.
The Maxiflex system can accept
the hardwired High and Trip Alarms from each monitor. These alarms can
be individually time-stamped by the Maxilarm alarm handling
module’s real-time clock at source, and the alarms displayed to the
operators on the OMNIFLEX Omni 4000 PC based alarm
handling package.
The OMNIFLEX range of independent alarm systems such
as the Omni16C, can also be integrated to provide
independent backup for critical alarms, ensuring the appropriate
levels of safety in the system can be achieved. PFD and MTBF data is
available to aid in the verification of safety related system
performance to meet standards such as IEC61508.
|
|
Experience where is counts |
As part of British Nuclear Fuels Limited's
standard ILW design standards, Omniflex was chosen to supply both
radiological surveillance and alarm/event management systems. A
number of new interface modules have been developed for the well
proven Maxiflex I/O system to provide interfaces to any of the
existing or new ranges of Harwell®
and Lab Impex® Alpha, Beta and Gamma radiation monitors.
The ILW design also includes the supply of an
independent alarm management system, which is designed to provide
real-time alarm/event monitoring.
Omniflex
Maxilarm and Omni 4000 systems were chosen to provide this critical
monitoring and logging.
An investment in products that carry such a large responsibility
requires confidence in our track record and the reliance of some of
the world’s leading nuclear industries, such as BNFL, on Omniflex
technologies, is sufficient testimony. To review
the BNFL Preferred Supplier Status click
here(800k)
|
|
A Complete Solution |
Omniflex has vast experience in the design of
complete data acquisition systems and has successfully
implemented systems using most of the world leading brands of SCADA
software (such as Intouch, iFix, Factorylink, Citect, and Panorama). OPC Servers and other open industry standard interfaces are available
for integrating the Maxiflex system to wide range of third
party Supervisory Systems.
A Maxiflex solution can provide you a complete building
or site-wide overview of every monitor. This enables an operator to
keep an overview of the entire system, but to quickly zoom through the
individual buildings and rooms down to individual monitors, all from
the central control point.
Ask us for more details on how we can assist you to
meet your radiation monitoring obligations. Ask about our reference list of projects
successfully completed in this specialised area.
|
|
