Simplify your Most Demanding Alarm and Sequence of Event Applications
The Maxilarm Distributed Alarm and Event Management System offers a complete distributed alarm management function for critical plants.
Maxilarm incorporates features such as sub-1millisecond time stamping at source, integrated analogue logging and remote alarm fascias to meet EEMUA 191 guidelines.
It may be used with the windows based Omni-4000 Alarm Management Package developed by Omniflex or with any SCADA system that supports OPC (OLE for Process Control). Click Here to View more Details Copyright © 2016 Omniflex (Pty) Ltd, All rights reserved.

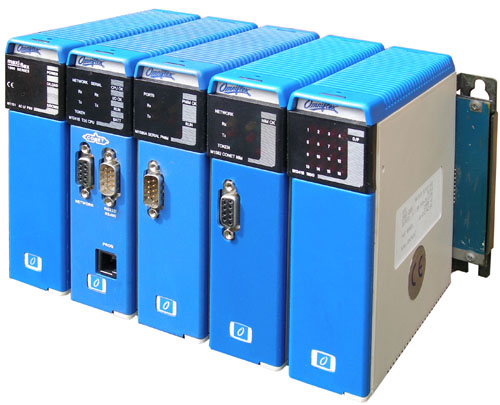

The Maxilarm alarm nodes are based upon the Omniflex field proven Maxiflex System. The Maxilarm system is optimised to its core (unlike a regular PLC) for handling more complex communications tasks.
Ultimately Maxilarm provides a dependable layer of plant protection and early diagnostics of fault transients in real time.
Key Features:
• Up to 126 Distributed Alarm Nodes
• 240 Alarm Points per Node
• Up to 32 Control Pushbuttons
• Time-stamping at source to 1ms
• Integrated Analogues
• Alarm shelving
• Individual and Group Alarm Shelving
• Chatter filter for nuisance inputs
• Spike filter prevents nuisance events
• Optional Redundant CPU’s
Advantages:
• Maxilarm system can be tailored to suit the most demanding needs.
• User programmable in all of the industry standard IEC61131-3 languages.
• A range of purpose designed CPU modules are available that optimise the demanding functions of queuing fast
events and handling synchronised flashing of large numbers of alarm fascias with no dependence upon conventional processor scan rates.
• An advanced 32 channel Sequence-of-Events input module scans the I/O at 200 microsecond intervals for the fastest SER function in the industry.
• Each module provides front-end event filtering and queuing, removing the possibility of the main processor becoming overloaded in avalanche conditions.
Benefits
• Maxilarm offers, Distributed Alarm Annunciation, Sequence of Events Recording, Digital, Analogue and 3rd party interface logging in one product, saving costs on spares holding and system support.
• Real Time alarm and event monitoring ensures plant Downtime is kept to a minimum, saving costs which can run into millions per hour.
• Historical Alarm and Event logging provides a very powerful analysis tool for management to monitor pre and post alarm and events.

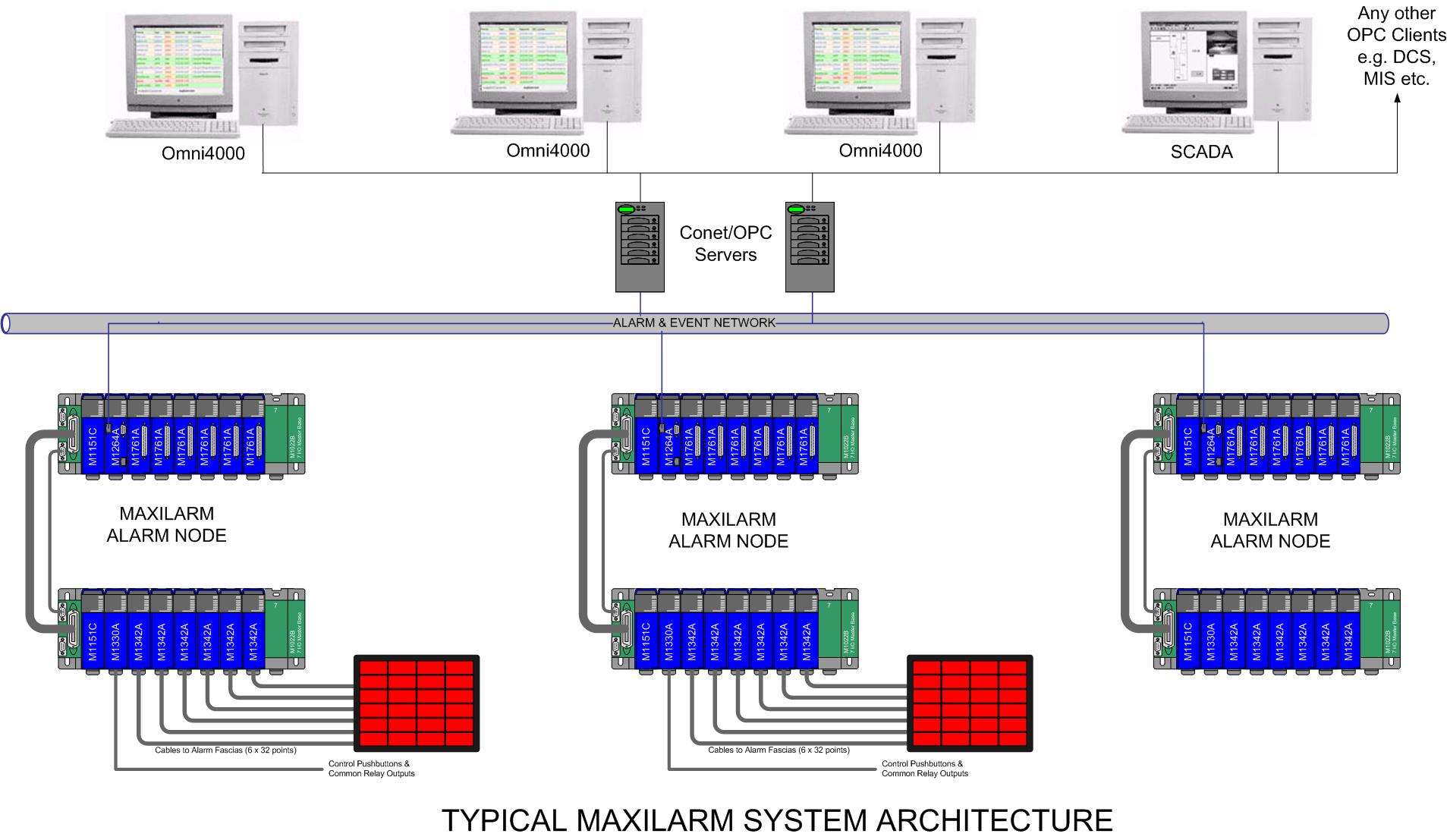

• Flexible Network infrastructure allows the benefit of multiple network topologies, utilising Ethernet, Radio, Fibre Optic, RS485 or Conet (any 2 cores of existing cable).
For further information, please contact us on:
sales@omniflex.com
or visit our website at www.omniflex.com
