Radio Telemetry System
Omniflex has launched a Teleterm M3R series which are state of the art Radio RTUs designed to expand the possibilities of remote monitoring and control by providing a cost effective platform with a wide range of features such as 12 inputs/outputs, support for Modbus and transmission using a radio operating in a license free band.

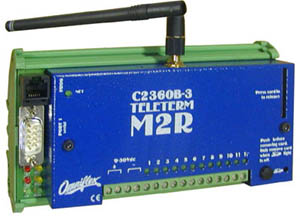

Teleterm M2R Package applications off the shelf Copyright © 2016 Omniflex (Pty) Ltd, All rights reserved.
FEATURES :
• RS232/485 Serial Port with Multiple Protocol Support
• 12 Inputs/Outputs (Analogue/Digital Selectable)
• Event Driven Alarm Functions
• Optional MMC/SD Memory Card for Local Data Logging
• User Application Programmable
• Reliable Low Cost Communications in High Noise Environments
• Operates in License Free Frequency Bands
• High Data Rate for Fast Response
• Mixed Analogue & Digital I/O
APPLICATIONS :
• Pump Remote Stop/Start
• Cable Saving
• Remote Site Monitoring
• Environmental and Effluent Monitoring
• Small Substation Monitoring
• Facilities Management
• Utilities Monitoring
• Bore-hole Monitoring
• Intrusion Alarms
• Production Downtime Minimization
COMMUNICATIONS OPTIONS :
• Frequency Hopping Spread Spectrum Radio Port
• Line of Sight
• Range of up to 8km on 868 MHz Operating Band
• Range of up to 8 km on 920 MHz Operating Band
• Secure Radio Communications with DES Encryption
• Multiple Channels in the same location
Update:Now upgraded to include onboard Ethernet!
View more details on the updated Teleterm M3R series
For further information, please contact us on :
sales@omniflex.com
or visit our website at www.omniflex.com
