High Density Interfacing for your HART Enabled Devices
The HART protocol is a comprehensive, open communications standard, for configuring and communicating with Smart field devices in industrial process applications. HART Data Acquisition is an important aspect of plant monitoring allowing existing Analogue loop philosophy to co-exist with data networks using the same cable.
The Maxiflex 8 Channel HART NIM (Network interface Module) is a plug in module for the Maxiflex Data Acquisition and Process Automation system. The NIM acts as a permanent host interface device (primary master or secondary master) on up to eight HART networks.

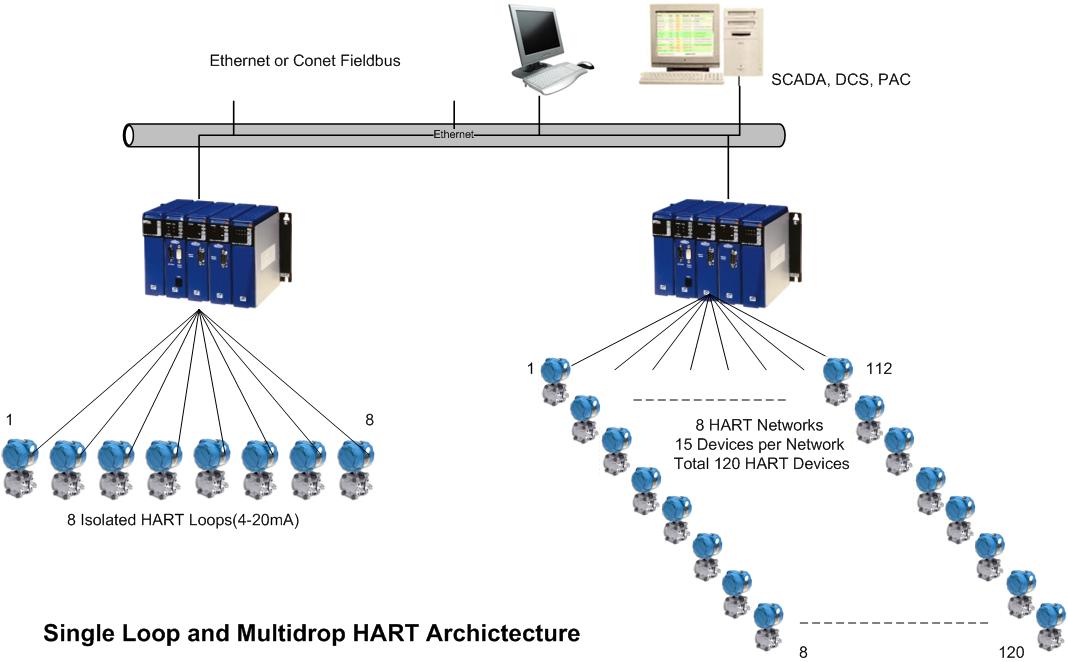

The NIM supports HART single channel mode and Multi-drop mode. Single channel mode is used for acquiring data from the individual HART loops and making the data available to SCADA, DCS, PLCS and data-logging systems, whilst multi-drop mode supports up to 15 HART devices per channel (8 off Hart channels x 15 HART devices = 120 HART devices on a single module) providing a high density small footprint solution for SCADA, DCS, PLC and data logging systems.
The NIM is self-configuring for ease of use. Once powered up, the NIM searches for HART devices on each of its 8 HART interfaces and builds an inventory of the devices found.
Features:
• Self Configuring for ease-of-use
• High Density, Small Footprint Solution
• Connect up to 8 HART loops and 120 HART Devices per module
View More Information on the Maxiflex M1438A 8H Hart Input Module
