Product Brief - Model C1477-2 Omni8u 20-60Vdc

OMNI8u 20-60Vdc - This product has been superseded by the C1477B-2.

picarrow 8 points with pushbuttons in 48x96mm
arrow The smallest Annunciator yet
arrow 8 Potential Free Contact Inputs
arrow 22 Standard Alarm Sequences
arrow Backlit LED Technology

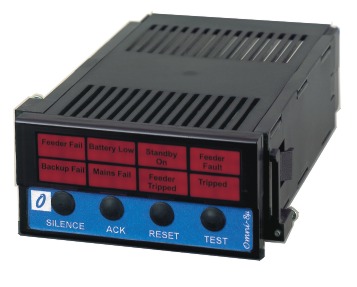

Omni8micro 8 Potential Free Contact Input Integral annunciator with backlit LED display. Test, Sil, Ack, Reset Pushbuttons Integral. Audible fitted. One Horn or GA alarm output.

This product has been superseded  by the C1477B-2.

The Omni8 micro is the smallest annunciator yet from Omniflex, designed for use in space restricted areas and low input counts. Omni-8 micro is a fully self- contained panel mounted annunciator with integral Test, Silence, Acknowledge, Reset Pushbuttons and audible device.

The 8 inputs accept potential free inputs and are individually switch configurable for normally open or normally closed input operation. Inputs are wired to plugin
terminals at the rear of the annunciator. The alarm sequence for the eight inputs is also configured by “DIP” switch with a choice of 22 standard sequences. A group alarm or horn output is available on a change over contact at the terminals. The relay contact can be set to one of four functions: Follows input, Follows alarm, multiple reflash or Horn.

Input 8 may be designated as an Inhibit input which enable the inputs on the annunciator to be disabled during maintenance and startup periods etc. The 8th window then acts as an inhibit indicator.
